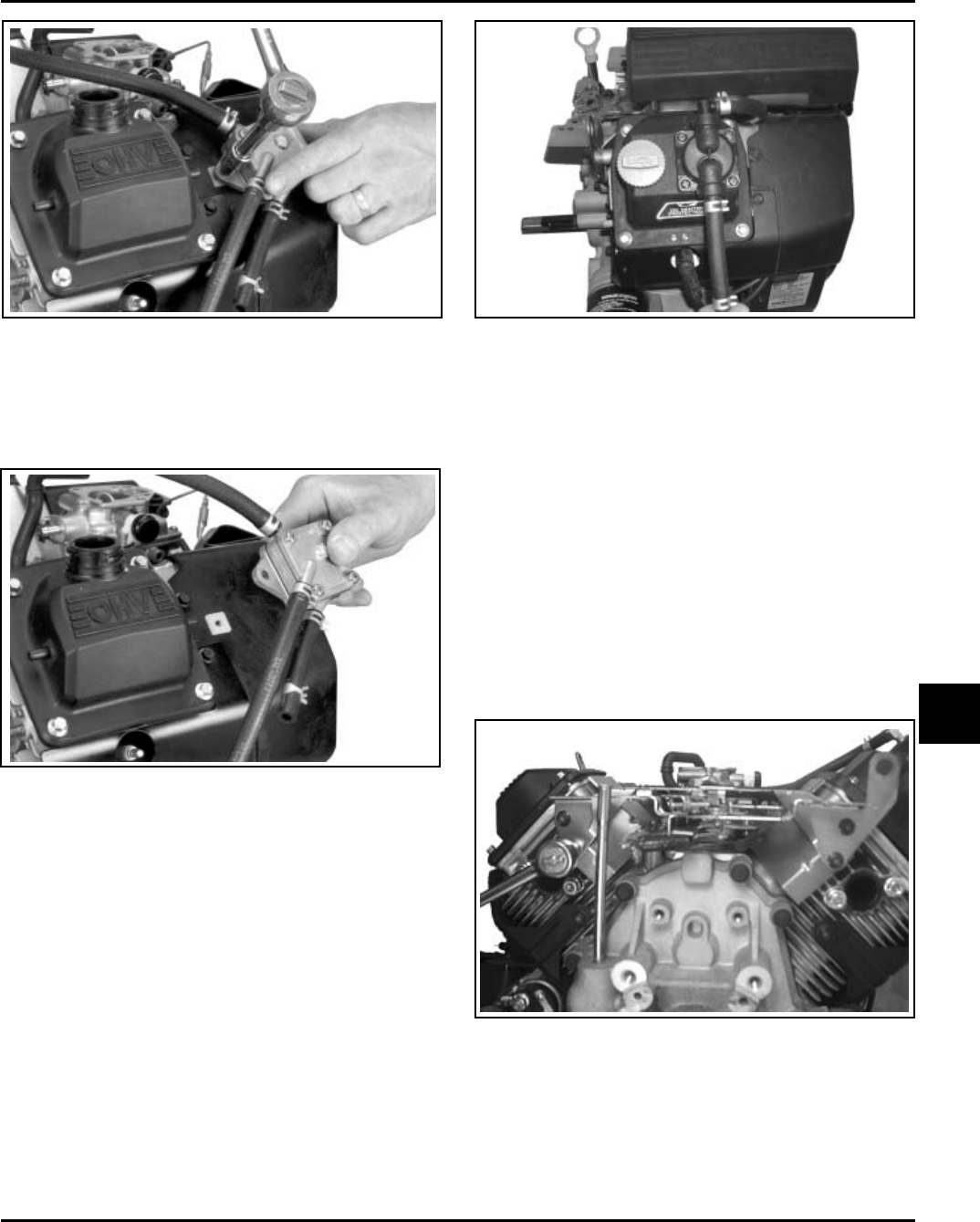

Figure 9-15. Removing Screws Holding Fuel Pump
(Metal Bodied Pump Shown).
4. Note or mark the orientation of the fuel pump,
then remove the fuel pump with lines attached as
shown in Figure 9-16.
Figure 9-16. Remove Fuel Pump and Lines.
Mechanical Fuel Pump
The mechanical style fuel pump is part of the valve
cover assembly. See Figure 9-17.
1. Disconnect the fuel lines at the pump outlet and at
the in-line fuel filter.
2. The fuel pump will be removed with the valve
cover. Refer to the valve cover removal
procedure.
Figure 9-18. Removing Control Bracket.
Figure 9-17. Mechanical Fuel Pump.
Remove Control Panel (If So Equipped)
1. Disconnect the Oil Sentry™ Indicator Light wires.
2. Disconnect the choke control cable from the
control bracket.
3. Disconnect the throttle control cable or shaft.
4. Remove the panel from the blower housing.
Remove Throttle & Choke Controls
1. Remove the four hex. flange screws securing the
control bracket and rear air cleaner bracket (some
models) to the cylinder heads. See Figures 9-18
and 9-19.
