126 | NAVISET ADMINISTRATOR 2 USER’S GUIDE
Example Task: Using Device Specic controls to congure a Tile Matrix
In this example a task is created to congure the Tile Matrix settings on 4 displays arranged in a 2x2 video wall.
This task will allow all the displays in the video wall to be recongured using a single task. This is useful if for ex-
ample if a video wall is used in multiple congurations of Tile Matrix, and needs to be quickly recongured.
Some of the commands, such as enabling the Tile Matrix, are applied to all of the displays with the same settings.
However for setting position of each displays within the Tile Matrix, individual settings per display are required.
This can be accomplished using the Device Selector controls.
1. Create a new Task by clicking the New Task toolbar button, or selecting New Task... from the Tasks
menu.
2. Enter a Name and Description for the task to indicate the purpose of the task.
3. Since the task will change the settings on displays, select Task Type: Command.

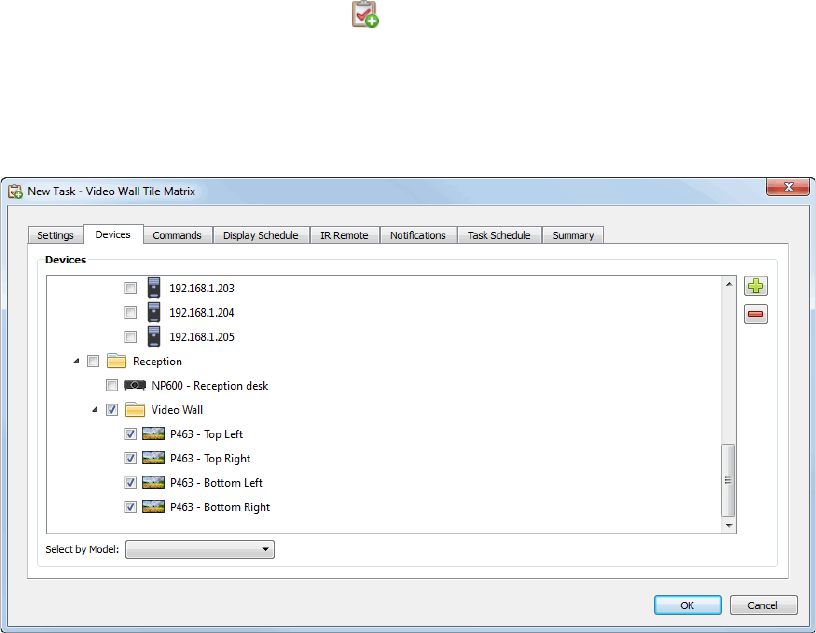

4. On the Devices tab, select the 4 displays in the video wall.
5. On the Commands tab, select and add the controls to congure the H and V size of the Tile Matrix, as
well as enabling the Tile Matrix. These controls will be applied with the same setting values for all of the
displays. In this example the Tile Matrix # H Monitors and Tile Matrix # V Monitors are set to 2 since
the video wall is arranged as a 2x2.
