4. Press E to activate the flight plan in the order shown
(figure 4-12). To activate the flight plan in inverse
order (first waypoint becomes last and last waypoint
becomes first), rotate the left outer knob one step
clockwise to position the cursor over USE? INVRT?
before pressing E (figure 4-13).
5. The selected flight plan is now displayed as FPL 0, the
active flight plan. Any changes made to FPL 0 will not
affect how this flight plan is stored as the numbered
flight plan.
4.1.3 Adding A Waypoint To A Flight Plan
A waypoint may be added to any flight plan containing
fewer than 30 waypoints. To add a waypoint to a flight
plan:
1. Press the left C to enable the left cursor function if it
is not on already (figure 4-14).
2. Rotate the left outer knob as necessary to position the
cursor over the waypoint identifier which you desire to
follow the waypoint being added. Another way to
think of this is to position the cursor over the location
in the flight plan you wish the new waypoint to be
added. For example, if SJI is presently the third
waypoint in the flight plan and you wish to insert
BUGLE intersection in the number three position in
front of SJI, move the cursor over SJI (figure 4-15).
3. Use the left inner knob to enter the first character of
the waypoint being inserted. As you begin to turn the
knob, the existing waypoint in this position automati-
cally jumps down to the next position. In this case,
SJI automatically moves to waypoint four (figure 4-
16).
4. Use the left outer and inner knobs in the normal man-
ner to complete entering the waypoint identifier (figure
4-17).
5. Press E to display the waypoint page on the right
side for the identifier just entered.
6. Press E again to approve the waypoint page
(figure 4-18).
7. Press the left C to turn off the left cursor function.
|

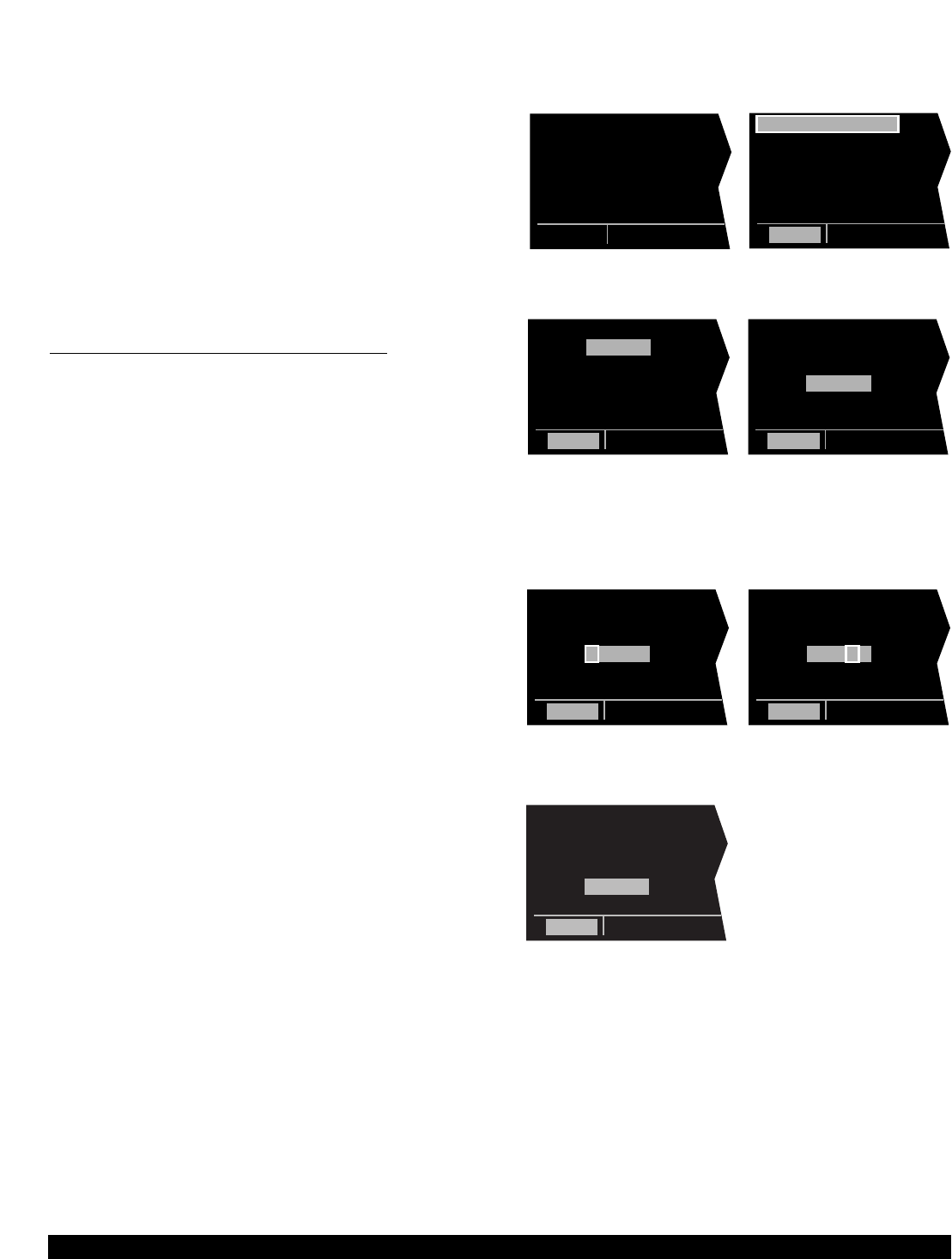

1:KNEW |
2:GPT |
3:SJI |
4:CEW |
8:KPIE |
CRSR
Figure 4-14
|
1:KNEW |
2:GPT |
3:SJI |
4:CEW |
8:KPIE |
CRSR
Figure 4-15
|
1:KNEW |
2:GPT |
3:B |
4:SJI |
9:KPIE |
CRSR
Figure 4-16
|
1:KNEW |
2:GPT |
3:BUGLE |
4:SJI |
9:KPIE |
CRSR
Figure 4-17
|
1:KNEW |
2:GPT |
3:BUGLE |
4:SJI |
9:KPIE |
CRSR
Figure 4-18
|
1:KNEW |
2:GPT |
3:SJI |
4:CEW |
8:KPIE |
FPL 0
Figure 4-12
USE? INVRT?|
1:KNEW |
2:GPT |
3:SJI |
4:CEW |
8:KPIE |
CRSR
Figure 4-13
