COMAND navigation system (route guidance)
136

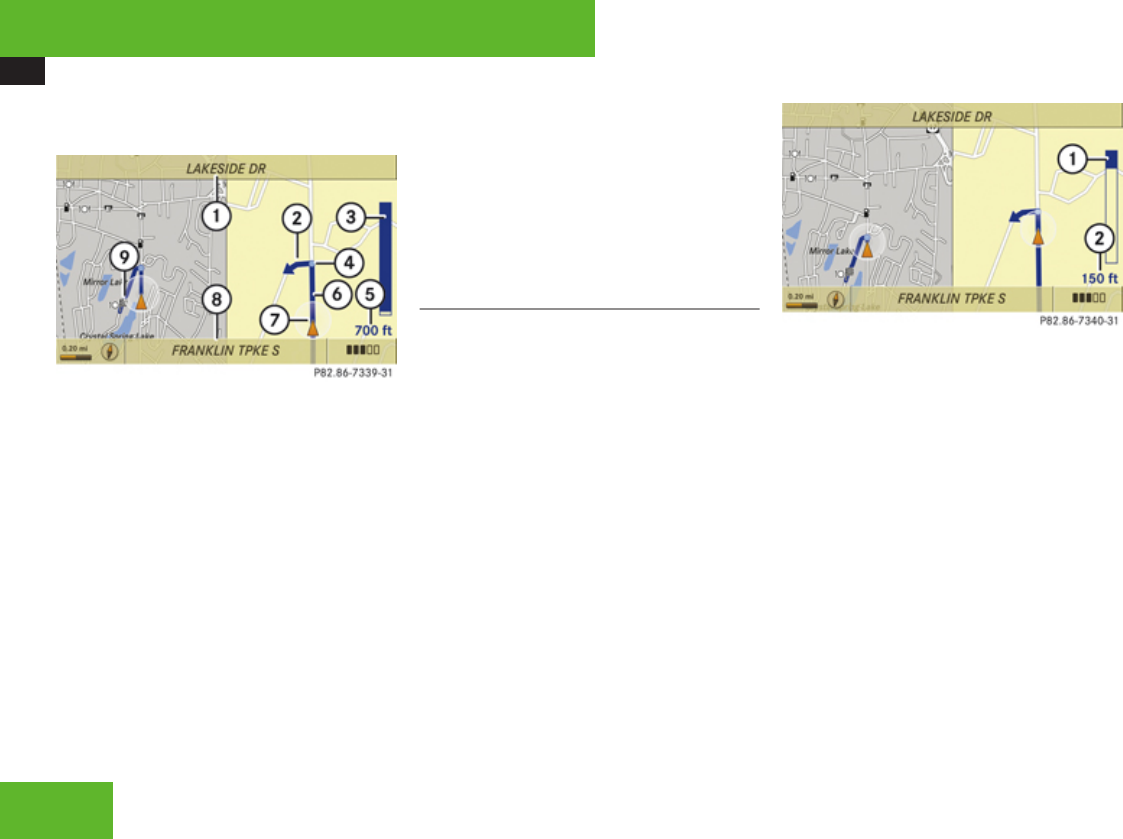

The following example illustration shows the
intersection zoom in the right half.
1
Next road
2
Driving maneuver (turn left)
3
Graphical representation of the distance
to the driving maneuver
4
Point at which the driving maneuver takes
place (light blue dot, shown in both the left
and right displays)
5
Information about distance to the next
driving maneuver
6
Route (highlighted in blue; shown in both
the left and right displays)
7
Current vehicle position; the triangle
indicates the vehicle’s direction of travel
(shown in both the left and right displays)
8
Street on which you are currently driving,
if included on the digital map
9
Destination
i
The filled-in section of distance graphic
3 gets shorter the nearer you get to the
announced driving maneuver.
Maneuver phase
COMAND announces the next driving
maneuver. Based on the example display
below, the driving maneuver is announced
150 feet in advance with the Now turn
left message. The display is also split into
two halves, as for the announcement phase.
i
Once the maneuver is completed,
COMAND automatically switches back to
the non-split screen.
1
Graphical representation of the distance
to the next driving maneuver
2
Information about distance to the next
driving maneuver
Control systems
