Emerson Process Management 00809-0700-4530 Radar Detector User Manual

Reference Manual
00809-0700-4530, Rev AA
Section 3: Commissioning
September 2013
Option 3 - Matching displacer output
The tank height (reference gauge height) and the probe length should be set to the same value.
The LRV is the distance from the bottom of the probe to the lower tap. The URV is the LRV plus
the distance to the upper tap. In this example, tank height (reference gauge height) equals the
probe length of 23 in. (584 mm), the LRV is 4 in. (102 mm), and the URV is 18 in. (457 mm).
Table 3-7. Option 3 example:

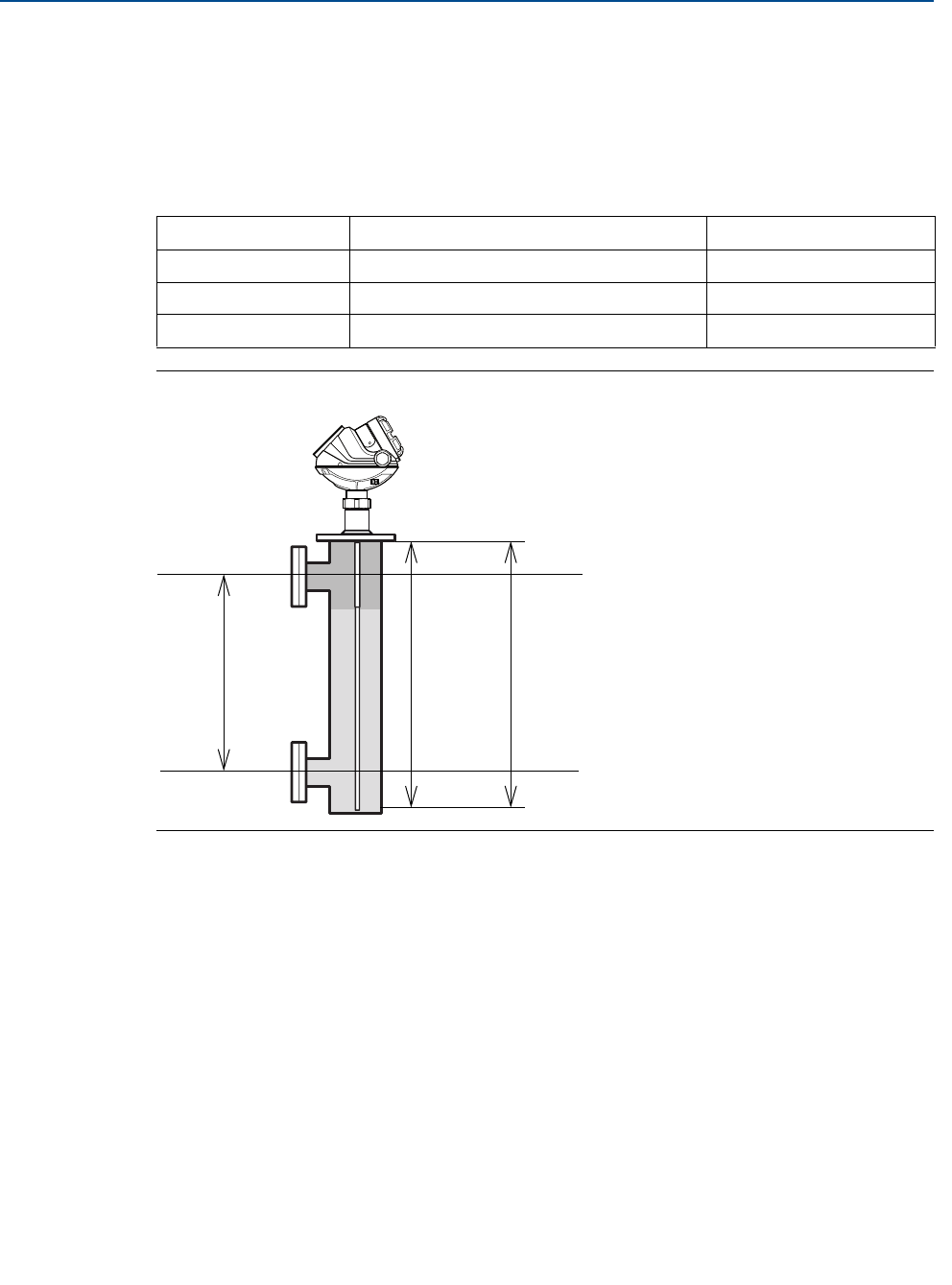

Figure 3-9. Range values for chambers - option 3
Gauge height same as probe length 23 in. (584 mm)
Probe length probe length 23 in. (584 mm)
URV LRV + distance between connections 18 in. (457 mm)
LRV end of probe to center of lower connection 4 in. (102 mm)
Displacer length
14 in. (356 mm)
Probe length 23 in.
(584 mm)
URV 18 in.
(457 mm)
LRV 4 in.
(102 mm)
Tank Height
Reference Gauge Height)
23 in. (584 mm)
