Section 4: Measurement validation
September 2013
Measurement validation

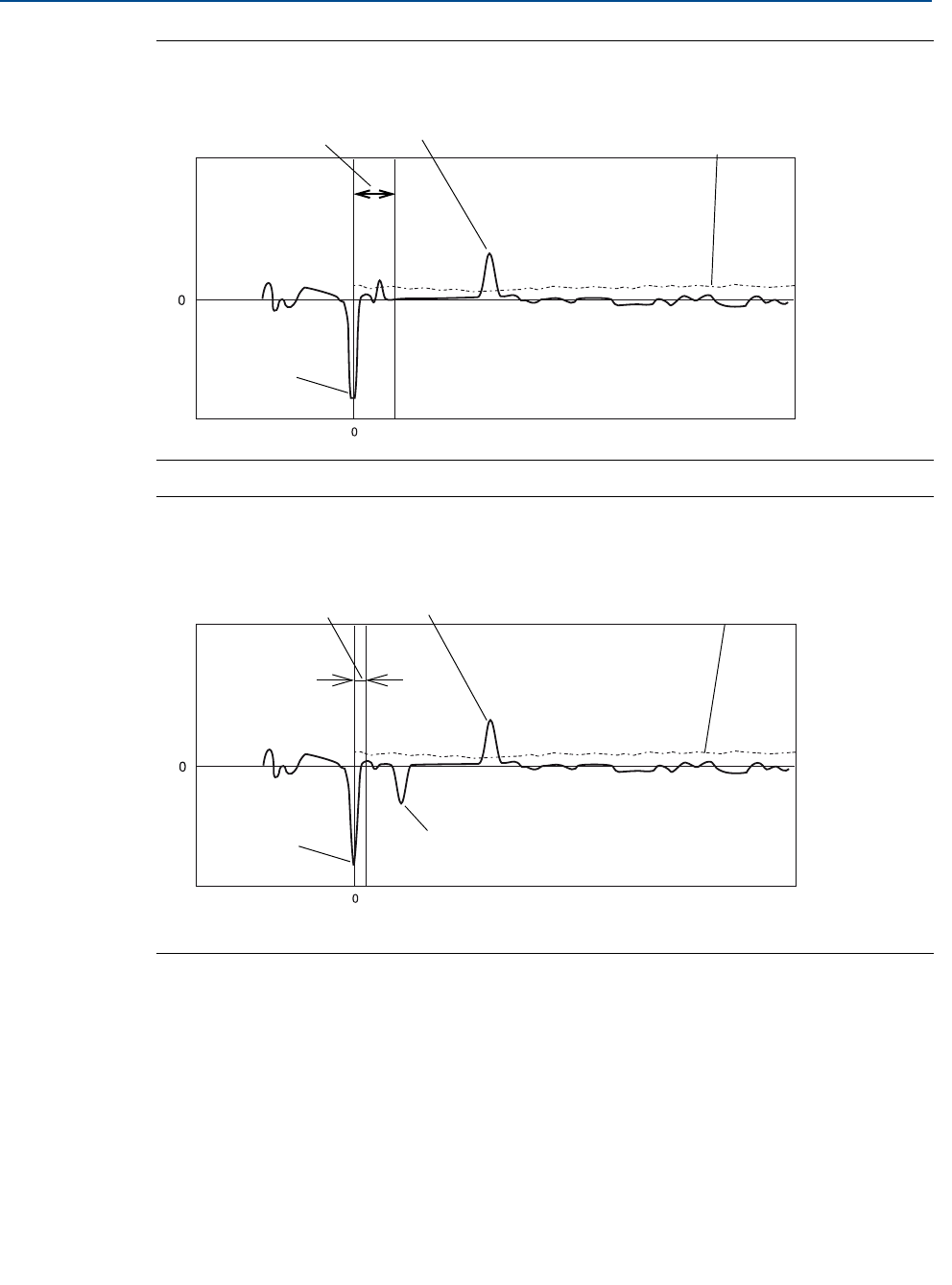

Figure 4-4. GWR transmitter peak amplitudes and threshold settings
Figure 4-5. Rosemount 5300 Series with DVC, reference reflector peak and threshold
settings
Step 4: transmitter diagnostics review
The transmitter contains valuable diagnostics that monitor the health of the device to make
sure that it does not report any errors or warnings. For details on diagnostic messages refer to
the transmitter reference manual. In RRM:
RRM > Tools > Diagnostics
UNZ
Surface
peak
Surface
threshold
Reference
peak
Distance
Amplitude
UNZ
Surface
peak
Surface
threshold
Reference
peak
Distance
Amplitude
Reference
reflector peak
