Section 2: Installation Considerations
September 2013
Installation considerations
2.5.2 Rosemount 5600 Series
The Rosemount 5600 Series can be used in tanks up to 165 ft (50 m).
As solids generally provide a difficult measuring environment and the signal levels are often very
low, installation is of utmost importance. Antenna selection and its location in the tank are the
keys to success.
Step 1: antenna selection

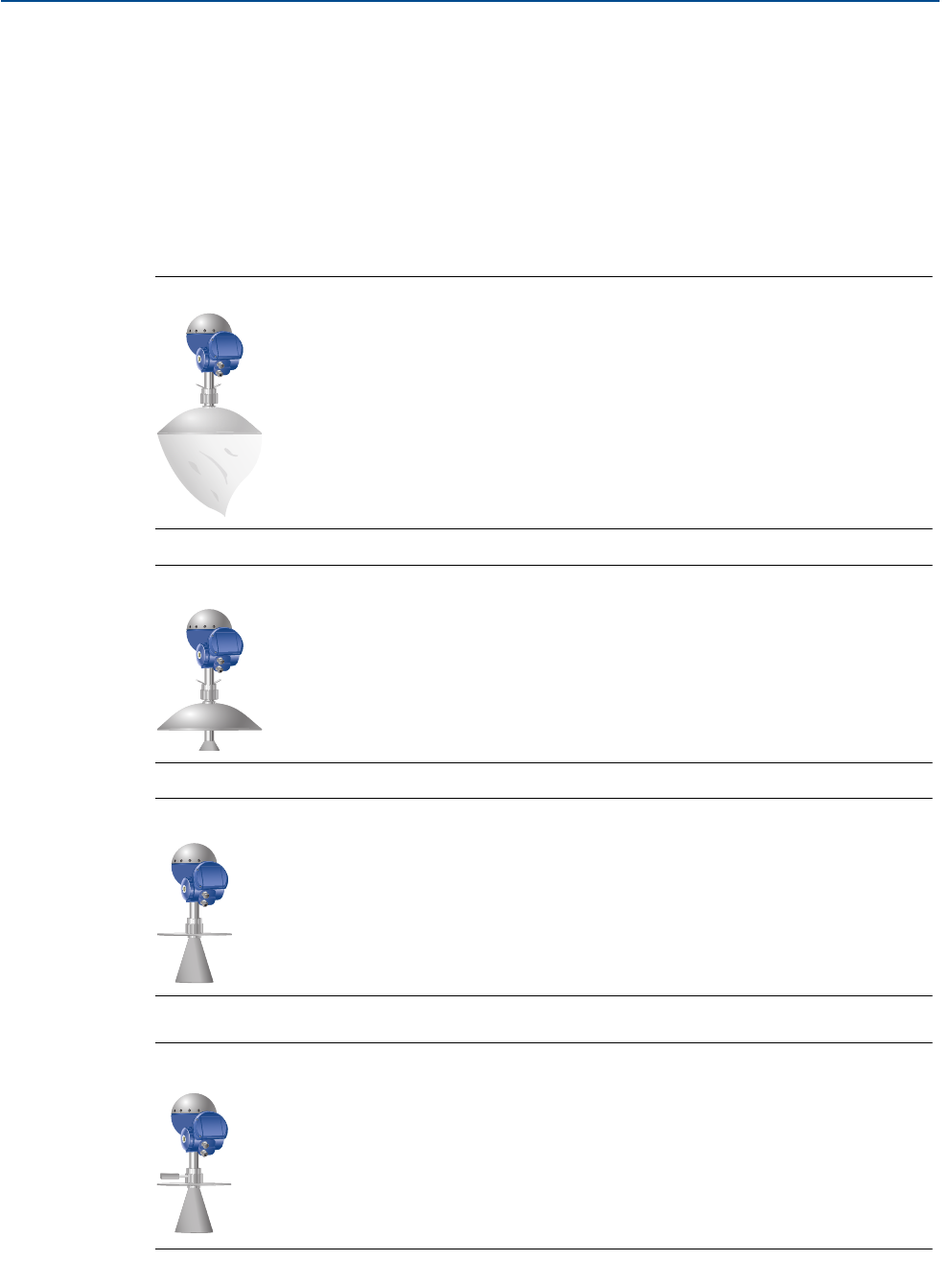

Figure 2-24. Parabolic antenna with a PTFE bag
Figure 2-25. Parabolic antenna
Figure 2-26. 8-in. Cone antenna
Figure 2-27. 8-in. Cone antenna with flushing adapter
Parabolic antenna with a PTFE bag:
ideal for dusty applications
the best choice for long distances
can handle weak surface reflection
positionable towards surface
the PTFE bag prevents dust build-up at the antenna
Parabolic antenna:
the best choice for long distances
can handle weak surface reflection
positionable towards surface
8-in. Cone antenna
suitable for distances of less than 50 ft (15 m)
stronger surface reflection than in the case of smaller
cones
8-in. Cone antenna with flushing adapter
ideal for dusty applications
suitable for short distances of less than 50 ft (15 m)
stronger surface reflection than in the case of smaller
cones
