Disassembly
9

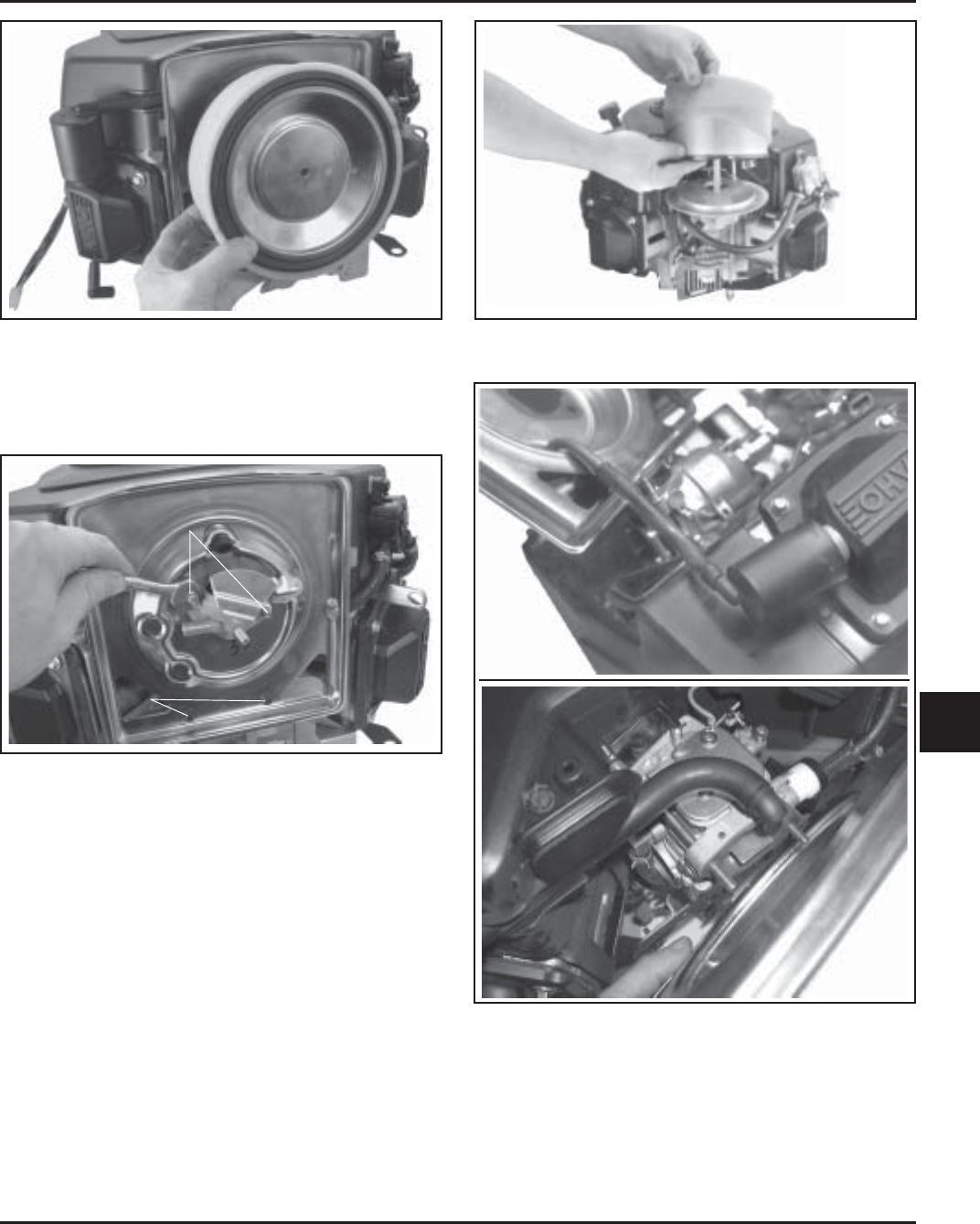

Figure 9-8. Removing Commercial Mower Element
and Precleaner.
Figure 9-6. Removing Standard Element and
Precleaner.
3. Remove the element cover, element and
precleaner. See Figure 9-6.
Figure 9-7. Removing Standard Air Cleaner Base.
4. Remove the two hex flange nuts securing the
spitback cup, baffle or bracket, and air cleaner
base. See Figure 9-7. Two additional lower screws
must be removed if the engine contains a lower
air cleaner support bracket.
Figure 9-9. Disconnect Breather Hose from Base.
5. Disconnect the breather tube from the nipple on
the underside, or the hose from the base (as
equipped). See Figure 9-9.
6. Remove the base and gasket while carefully
pulling the rubber breather tube through the
base.
Hex Flange
Nuts (2)
Lower Mounting
Screws (Some
Models)
