1.8.7 V alve Clearance
1.8.8 Fuel Injection
Refer to Section 5.2
NOTE
Valve c learance must be checked andadjusted
when the engine is cold.
1. Remove the valve cover.

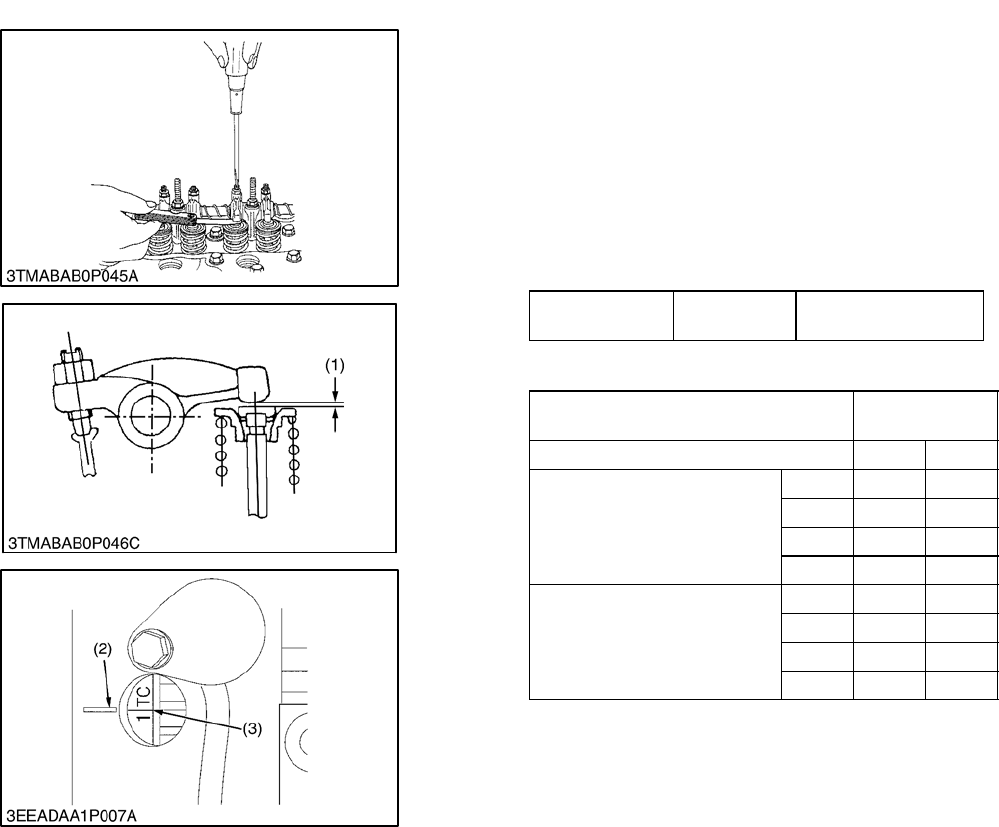

2. Align the “ 1TC” mark line (3) on the flywheel and pro-
jection (2) on the housing so that the Number 1piston
comes to compression or overlap top dead center
(TDC).
3. Check the following valve clearance (1) marked with
“*” using a feeler guage.
Valve C learance
Factory
Specification
0.18 to 0.22 mm
0.0071 to 0. 0086 in.
4. If the clearance is not within the factory specifica-
tions, adjust with the adjusting screw.
Valve
Arrangement
Piston Location i n Cylinder IN. EX.
When No. 1 piston is at TDC
No. 1 * *
No. 2 *
No. 3 *
No. 4
When No. 1 piston is at past TDC
No. 1
No. 2 *
No. 3 *
No. 4 * *
