5700/5800 GPS Receiver User Guide 29
Setting up the Receiver 3
5700 GPS Receiver Operation
External radio setup
To use an external radio with the 5700 receiver, you need an external
power source for the radio.
To set up a 5700 receiver using an external radio:
1. Connect one end of the yellow GPS antenna cable to the yellow
TNC port on the 5700 receiver.
2. Connect the other end of the GPS antenna cable to a Zephyr or
Zephyr Geodetic antenna.
3. Connect the external radio to Port 3 on the receiver.
4. Connect a radio antenna to the external radio.

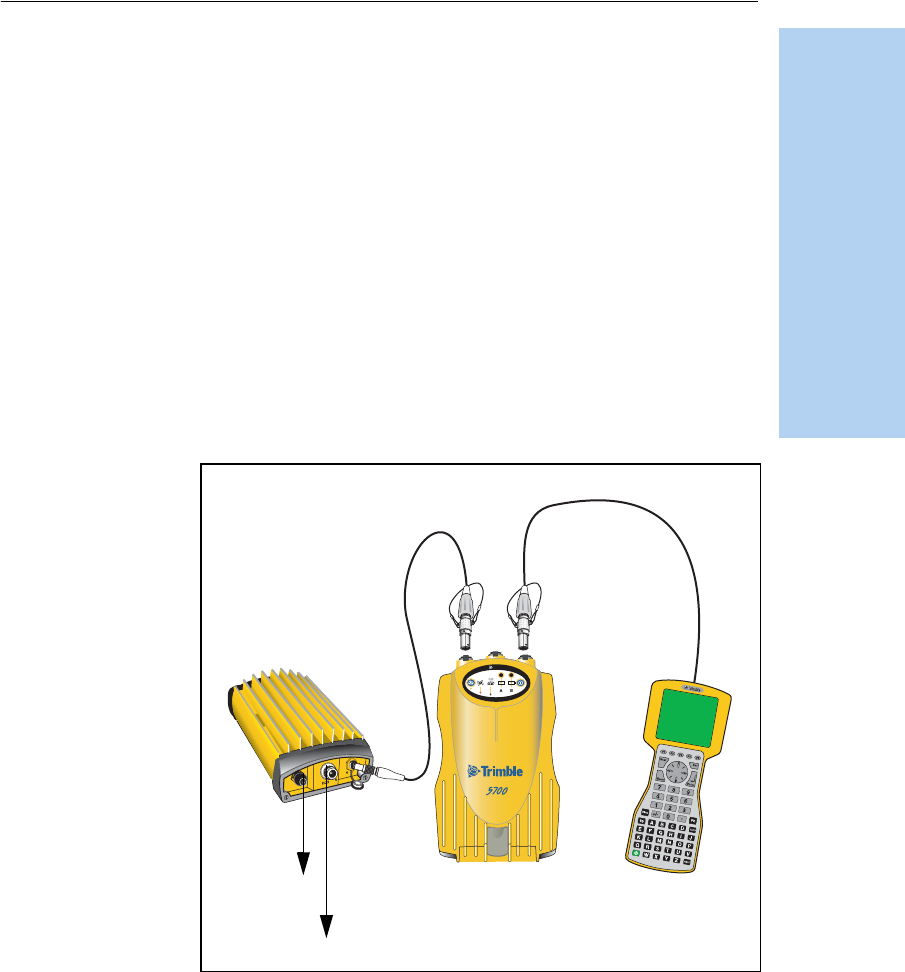

Figure 3.12 shows a TRIMMARK 3 radio connected to a 5700
receiver.
Figure 3.12 Connecting an external radio
2
3
t
To antenna
To power supply
