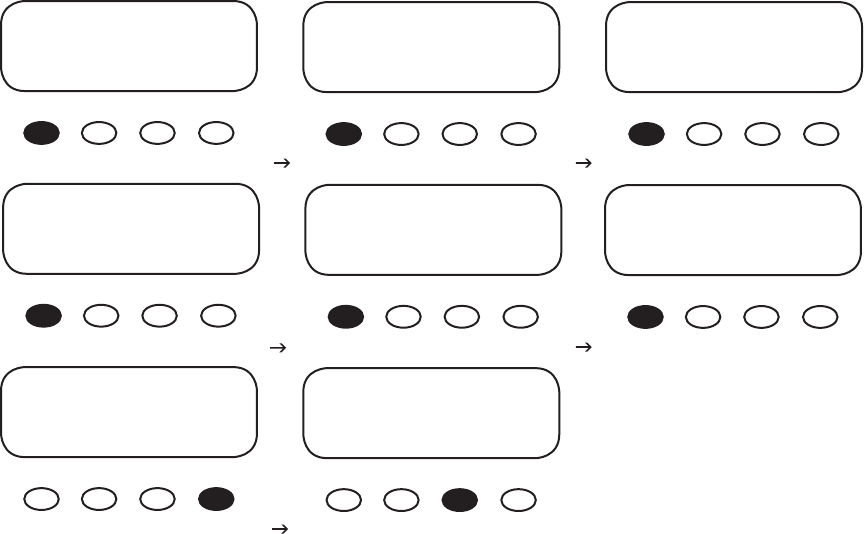

MATE-DISPLAYED MX60 STATUS METER Screens
MX METER Screens
• mode/pv/in/bat/out: displays the charger mode, the PV array voltage, the incoming PV amps, the
battery voltage, and the outgoing amps to the battery
• charger watts: charger output measured in watts
• charger kwhrs: kilowatt hours produced in the last 60 minutes by the MX60
• charger amps dc: the amount of amperage the MX60 is sending to the battery
• battery voltage: current battery voltage
• panel voltage: current voltage from the PV array
mode: Silent P00
pv 10.0v bat 26.0v
in 0a out 0a
DOWN STATUS PORT
STATUS/MX/METER--P00
charger 0 w
watts
DOWN UP TOP PORT
STATUS/MX/METER--P00
charger .0 kwh
kwhrs
DOWN UP TOP PORT
STATUS/MX/METER--P00
charger +000 adc
amps dc
DOWN UP TOP PORT
STATUS/MX/METER--P00
battery 26.5 vdc
voltage
DOWN UP TOP PORT
STATUS/MX/METER--P00
panel 10.2 vdc
voltage
DOWN UP TOP PORT
STATUS/MX/METER-----
end of meter menu
UP TOP STATUS
STATUS/MX-----------------
MODE METER SETP MAIN
Press <SETP> to view the
SETPOINT screens
