Garmin G1000 Cockpit Reference Guide for the DA40/40F
1-5
SECTION 1
SYSTEM OVERVIEW
INSET
OFF
TOPO
TRAFFIC
TERRAIN
DCLTR
DCLTR-2
DCLTR-3
DCLTR-1
NEXRAD
Press the BACK or OFF Softkey
to return to the top level
softkeys.
XM LTNG
BACK
ALERTS
(optional)(optional)

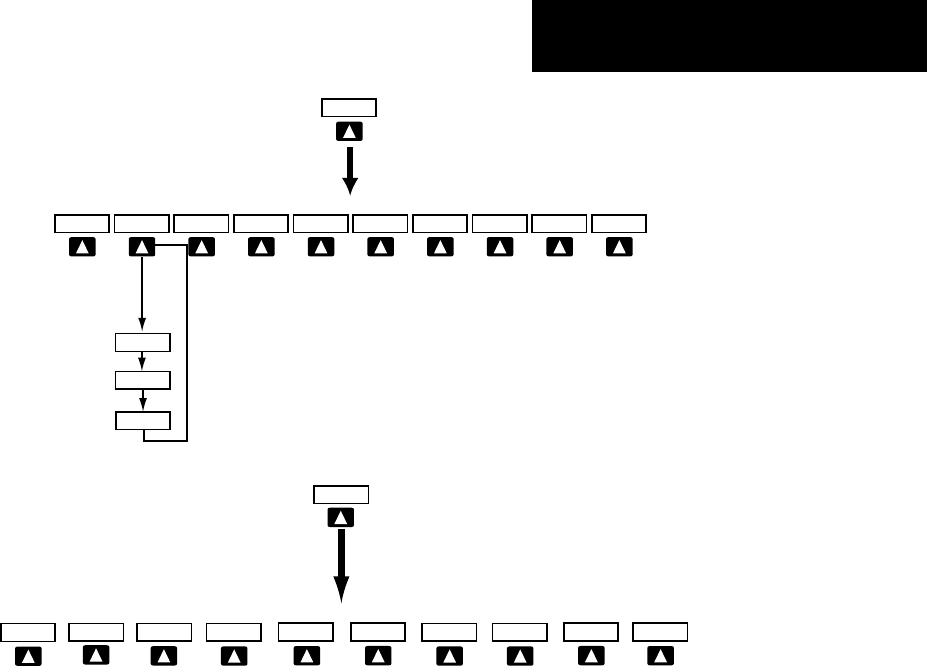

Figure 1-3 PFD Softkey Flow Chart – 1
PFD
Press the STD BARO or BACK Softkey
to return to the top level softkeys
Press the DFLTS Softkey to change the PFD
metric values to standard
ARC HSI
360 HSI
STD BARO
BACK
ALERTS
BRG2
BRG1
METRIC
DFLTS
DME
(optional)
Figure 1-4 PFD Softkey Flow Chart – 2
NAV1
– Displays NAV1 waypoint frequency or
identifier and DME information in the BRG1
Information Window.
GPS
– Displays GPS waypoint identifier and GPS
distance information in the BRG1 Information
Window.
ADF
– Displays ADF waypoint frequency in the
BRG1 Information Window.
OFF
– Removes the BRG1 Information
Window.
360 HSI
– Press to display the 360° compass rose.
ARC HSI
– Press to display the 140° viewable arc.
BRG2 (bearing)
– Press to cycle through the
following Nav sources, making the pointer the
indicator for the corresponding source and
displaying the the appropriate information.
NAV2
– Displays NAV2 waypoint frequency or
identifier and DME information in the BRG2
Information Window.
GPS
– Displays GPS waypoint identifier and GPS
distance information in the BRG2 Information
Window.
ADF
– Displays ADF waypoint frequency in the
BRG2 Information Window.
OFF
– Removes the BRG2 Information
Window.
