Loading and storing
216

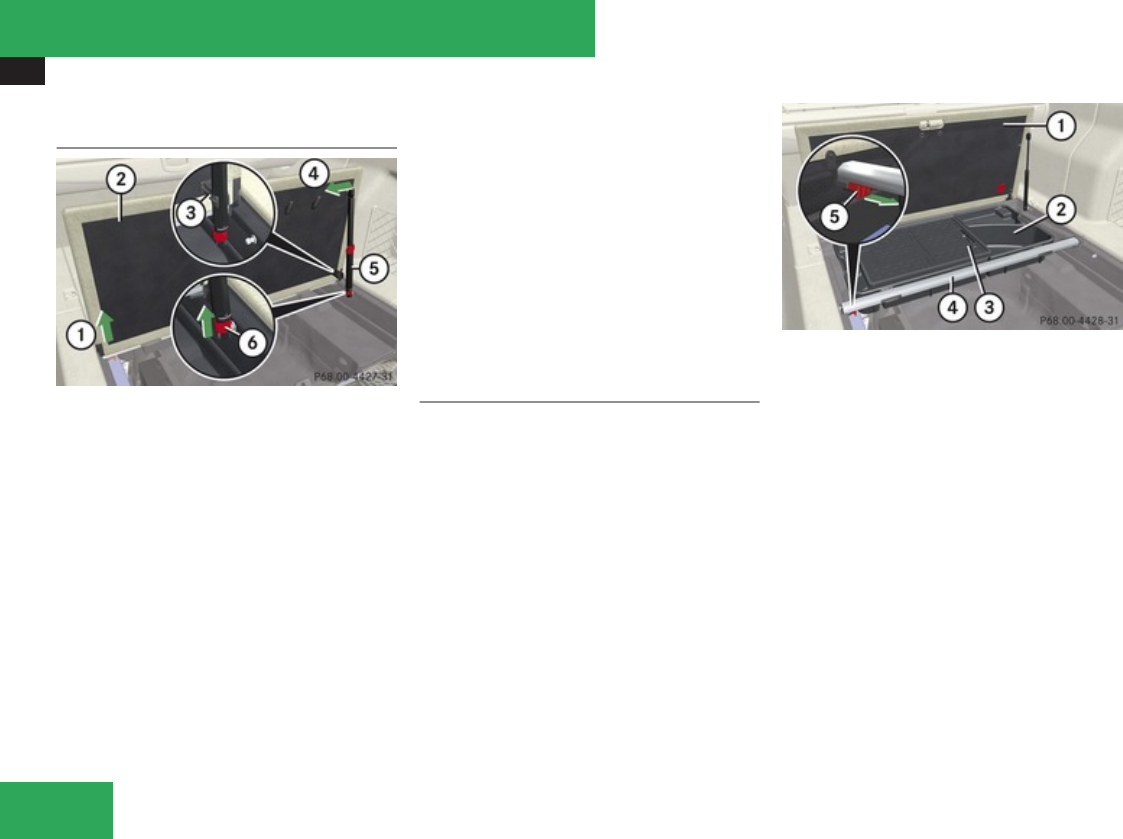

Removing the rear cargo compartment
floor
1
Raising
2
Rear cargo compartment floor
3
Retainer
4
Moving out
5
Pneumatic spring
6
Release catch
X
Open rear cargo compartment floor 2
(Y page 214).
X
Slide release catch 6 upward and remove
pneumatic spring 5 from bolt by moving it
to the left.
X
Press pneumatic spring 5 into retainer
3.
X
Move rear cargo compartment floor 2 into
an almost vertical position (to an angle of
85°).
i
Rear cargo compartment floor 2 can
only be moved upwards out of the lug at an
angle of 85°.
X
Grip the top of rear cargo compartment
floor 2, raise left-hand side 1 and move
it to the left out of lug 4 on the right-hand
side.
Expanding the cargo compartment floor
X
Remove rear cargo compartment floor 2
(Y page 216).
X
Open front cargo compartment floor 1.
1
Front cargo compartment floor
2
Loading tray
3
Folding box
4
Crossbar
5
Release catch
X
Remove loading tray 2.
X
Slide release catch 5 all the way to the
right and press left side of crossbar 4
upward.
X
Pull crossbar 4 to the left away from the
guide tab and remove it.
Controls in detail
