To insert or remove the mounting
element
S
To move the mounting element to the
next engaging point
X
Turn mounting element 2 to L.
X
Insert mounting element 2 in cargo rail
1.
X
Turn mounting element 2 until it engages
in position j.
You should be able to feel mounting
element 2 engage in cargo rail 1.

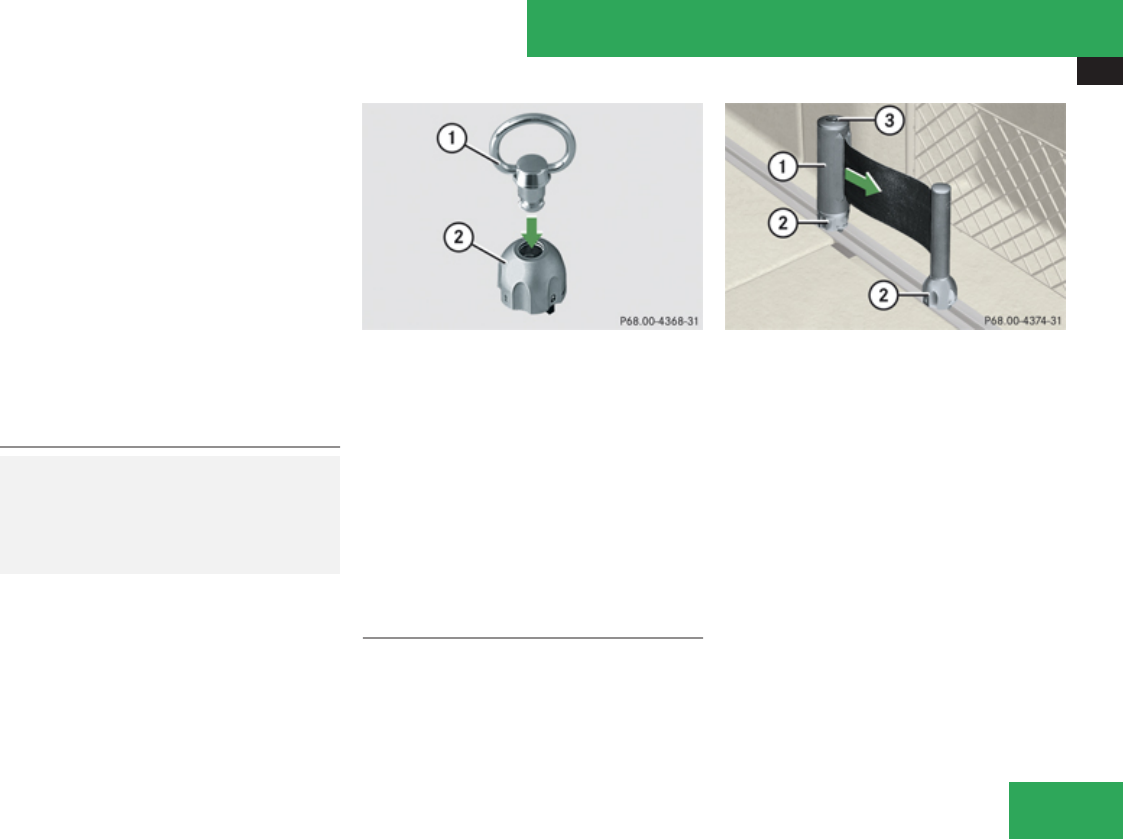

Inserting the cargo tie-down ring in the
mounting element
G
Warning!
The cargo tie-down rings should be subject
to equal loads. Make sure to comply with
the information provided in the loading
instructions.
1
Cargo tie-down ring
2
Mounting element
X
Turn mounting element 2 in the cargo rail
to L.
X
Insert cargo tie-down ring 1 into mounting
element 2.
X
Turn mounting element 2 until it engages
in position j.
You should be able to feel mounting
element 2 engage in the cargo rail.
Belt reel
The belt reel can be used to tighten light-
weight loads against the side wall of the cargo
compartment, thus securing them from
slipping.
1
Belt reel
2
Mounting element
3
Locking button
X
Insert two mounting elements 2 into a
cargo rail.
X
Turn mounting element 2 in the cargo rail
to N.
X
Insert belt reel 1 into mounting element
2.
X
Turn mounting element 2 in the cargo rail
until it engages in position j.
You should be able to feel mounting
element 2 engage in the cargo rail.
X
Press locking button 3 on belt reel 1 and
pull cargo belt out in direction of arrow.
