4G9 ENGINE (E-W) -
Rocker Arms and Camshafts
11A-8-4
PWEE9502
E
May 1995Mitsubishi MotorsCorporation

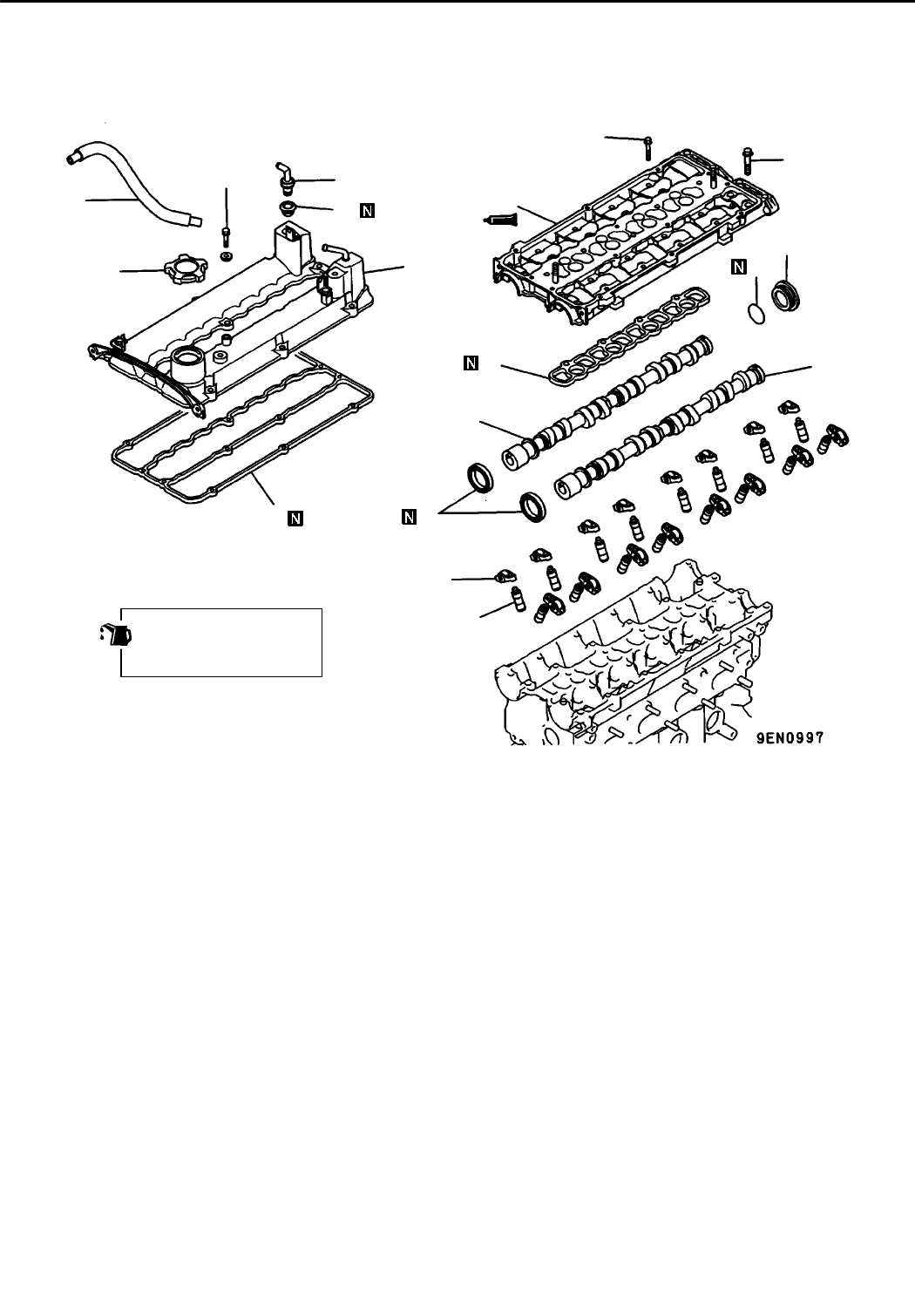

REMOVAL AND INSTALLATION <DOHC-GDI for PAJERO io - 4G93>
3.5 Nm
21 Nm
11 Nm
2
3
1
4
5
8
13
10
9
11
12
14
6
7
15
Apply engine oil to all
moving parts before
installation.
Removal steps
1. Breather hose
2. P.C.V. valve
3. P.C.V. valve gasket
4. Oil filler cap
5. Rocker cover
6. Rocker cover gasket
7. Oil seal
8. Thrust case
9. O-ring
"
I
A
10. Beam camshaft cap
11. Gasket
12. Intake camshaft
13. Exhaust camshaft
14. Rocker arm
A
A
""
F
A
15. Lash adjuster
PWEE9502-H
E
July 2000MitsubishiMotors Corporation Revised
