©2011 Edelbrock LLC
Part #1596, 1597, 1598 & 1599
Brochure #63-1598
Rev. 2/11 - AJ/mc
Edelbrock E-Force Supercharger System for
the 2010 Camaro SS
Installation Instructions
Page 7

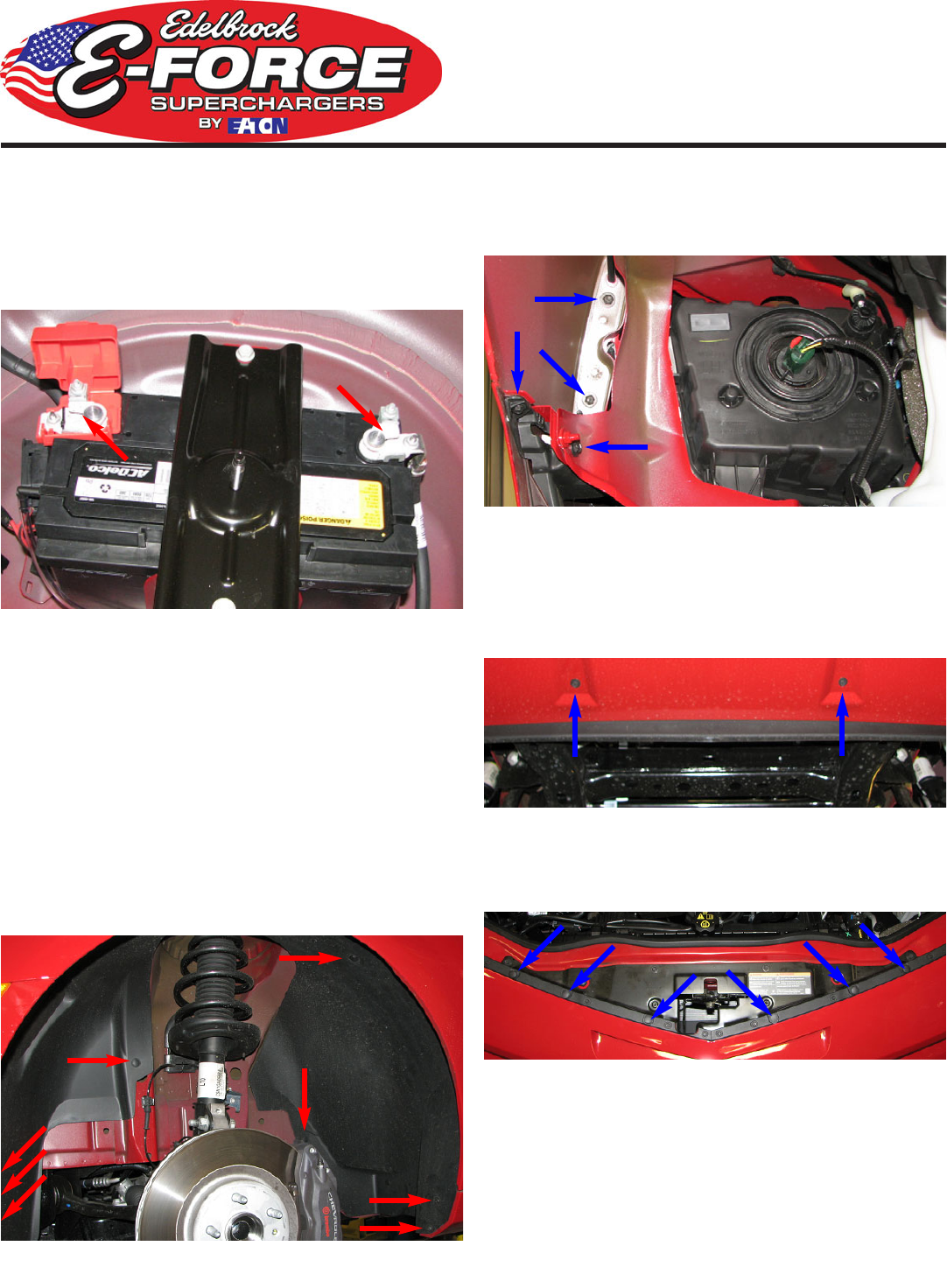

1. Open trunk and lift trunk liner to access plastic hold
down. Unscrew plastic hold down then remove air
compressor and foam support.
2. Use a 10mm socket to loosen and remove the negative
battery terminal.
3. Lift the protective cover then use a 10mm socket to
loosen and remove the positive battery terminal.
4. Lift and support the front end of the vehicle using a
service lift or jack and appropriately load rated jack
stands then loosen and remove the lug nuts from both
front wheels. Remove the wheels and set them aside.
5. Use a T20 Torx wrench to remove the three bolts on
each side holding the front and the two holding the rear of
the front wheel fender liners. Use a panel puller to
remove the five body pins on each side that retain the
inner fender wells then remove them and set them aside.
6. Reach in through the wheel wells with a 10mm socket
to remove the four bolts at the front of each side of the
fascia then use a 7mm socket to remove the two bolts on
each side of the front fascia.
7. Disconnect the fog lamp electrical connectors and the
fascia wiring harness connector on the passenger side.
8. Use a 10mm socket to remove the two bolts retaining
the bottom of the fascia.
9. Use a panel puller to remove the six body pins holding
the top of the fascia then use a 10mm socket to remove
the bolt at each end of the top of the fascia.
10. The front fascia can now be pulled forward and off
the car and set aside.
