©2011 Edelbrock LLC
Part #1596, 1597, 1598 & 1599
Brochure #63-1598
Rev. 2/11 - AJ/mc
Edelbrock E-Force Supercharger System for
the 2010 Camaro SS
Installation Instructions
Page 13

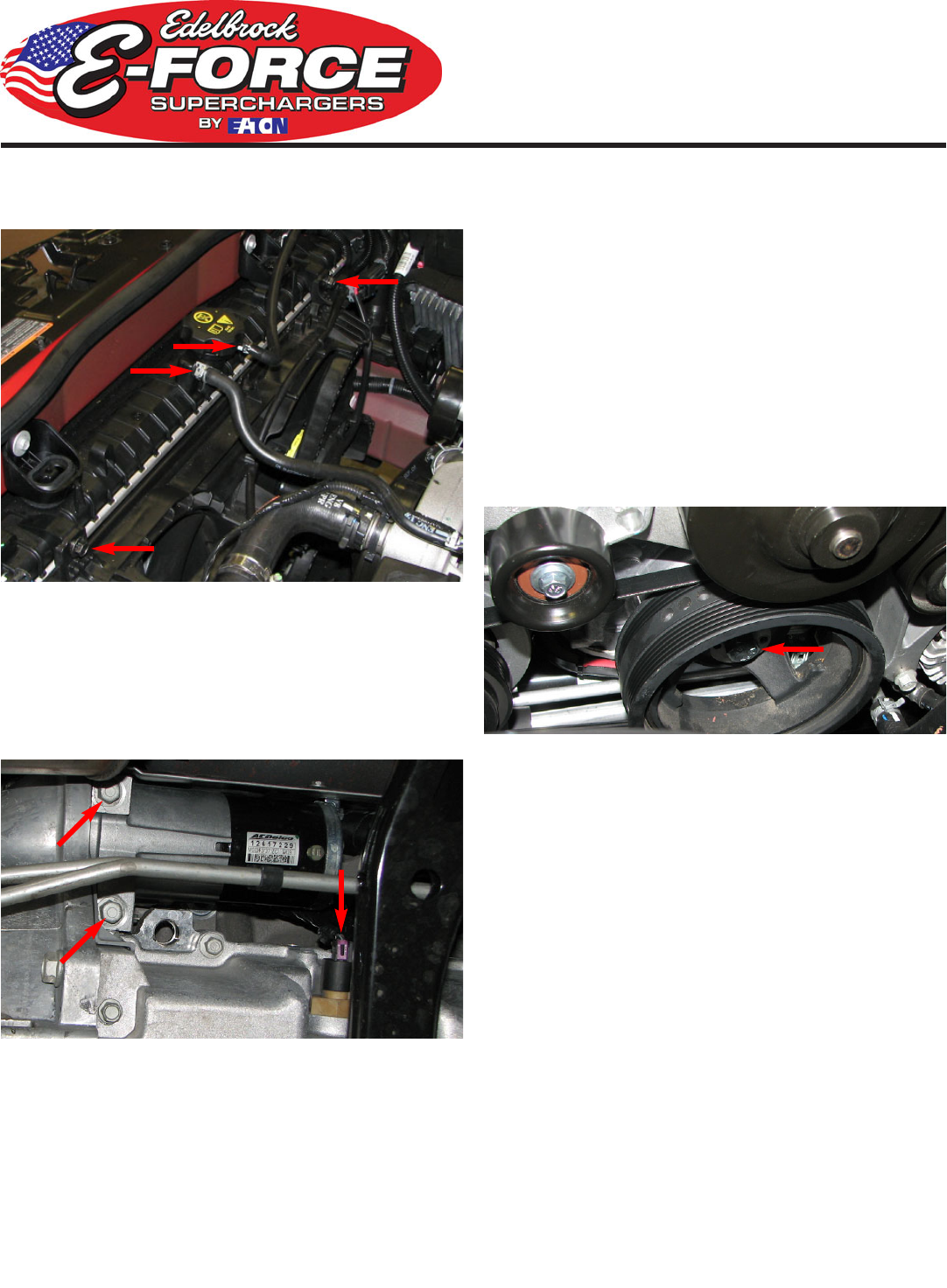

63. Use pliers to loosen the hose clamps and disconnect
the two small upper radiator hoses. Use caution when
removing and reinstalling hoses onto plastic fittings.
64. Use a 13mm socket to remove the two bolts holding
the fan assembly to the top of the radiator then
disconnect the electrical connector on the passenger side
of the fan assembly and remove the radiator fans.
65. Disconnect the oil level sensor electrical connector
from the passenger side of the oil pan.
66. Use a 10mm socket to remove the starter support
bracket bolt.
67. Use a 13mm socket to remove the two starter bolts.
68. Use an 8mm wrench to remove the three bolts
retaining the starter heat shield.
69. Disconnect electrical connector at top of starter.
70. Use a 13mm socket to remove the nuts retaining
power wires to the starter.
71. Remove and set aside the starter and bracket.
72. Install GM Flywheel Holding Tool #J-42386-A to
prevent the crank from rotating while loosening the
balancer bolt and torque the bolts holding it to 37 ft/lbs.
73. Use a breaker bar and a 24mm socket to loosen and
remove the crank bolt. A long pipe slid over the breaker
bar can be helpful for increasing leverage.
74. Install the drill guide and the M16 x 120mm bolt
supplied in Bag #4 onto the end of the crankshaft.
75. Measure 1.7” from the tip of the 15/64” drill bit
supplied in Bag #4 and mark the position with a piece of
masking tape then drill into the crank through the hole in
the guide that has a bushing in it until the tape mark
reaches the drill guide.
76. Loosen the bolt holding the drill guide and rotate it
until the second hole lines up with the hole drilled in the
crank. Use the back side of the ream tool to verify the
guide is correctly aligned.
77. Tighten the guide bolt then use compressed air to
clean out any metal flakes in the drill hole.
78. Insert the supplied ream tool through the hole and
ream the full depth of the hole.
