©2011 Edelbrock LLC
Part #1596, 1597, 1598 & 1599
Brochure #63-1598
Rev. 2/11 - AJ/mc
Edelbrock E-Force Supercharger System for
the 2010 Camaro SS
Installation Instructions

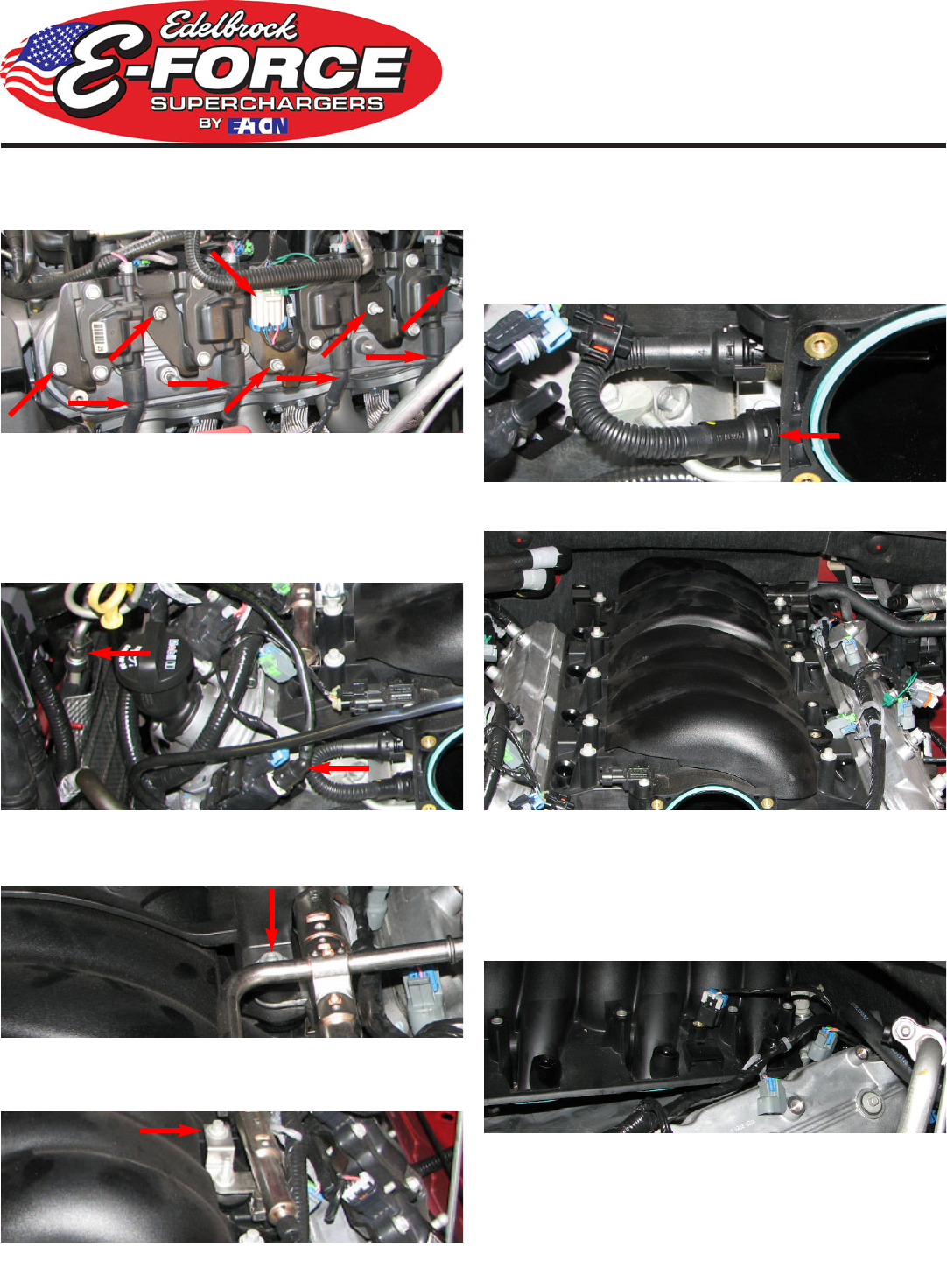

Page 9
22. Disconnect the two ignition harness connectors, the
eight spark plug wires from the ignition coils and the eight
fuel injector electrical connectors.
23. Use a 10mm deep socket to remove the five studs
retaining each of the ignition coil brackets to the valve
covers. Lift and remove the coil brackets as an assembly.
24. Disconnect the EVAP hose from the EVAP Solenoid
and the passenger side fender fitting.
25. Use a 10mm socket to remove the nut on the driver
side and remove the plastic manifold webbing.
26. Use an 8mm socket to remove the manifold bolt on
the driver side retaining the fuel rail bracket.
27. Use a 10mm deep socket to remove the four fuel rail
studs. Remove the fuel rail bracket then remove the rails
by lifting the injectors straight up out of their provisions
then work the rails forward and set them aside.
28. Disconnect the PCV tube from the engine valley cover.
29. Remove the manifold insulating cover.
30. Use an 8mm socket to remove the nine remaining
manifold bolts. Note that the rearmost passenger side
bolt will come out with the manifold and that it is
necessary to rotate the manifold towards the passenger
side to remove the rearmost driver side bolt and the
bracket it retains.
31. Reach behind the manifold from the driver side to lift
the gray tab and depress the black tab to disconnect the
oil pressure sensor electrical connector.
