Edelbrock E-Force Supercharger System for
the 2010 Camaro SS
Installation Instructions
Page 11

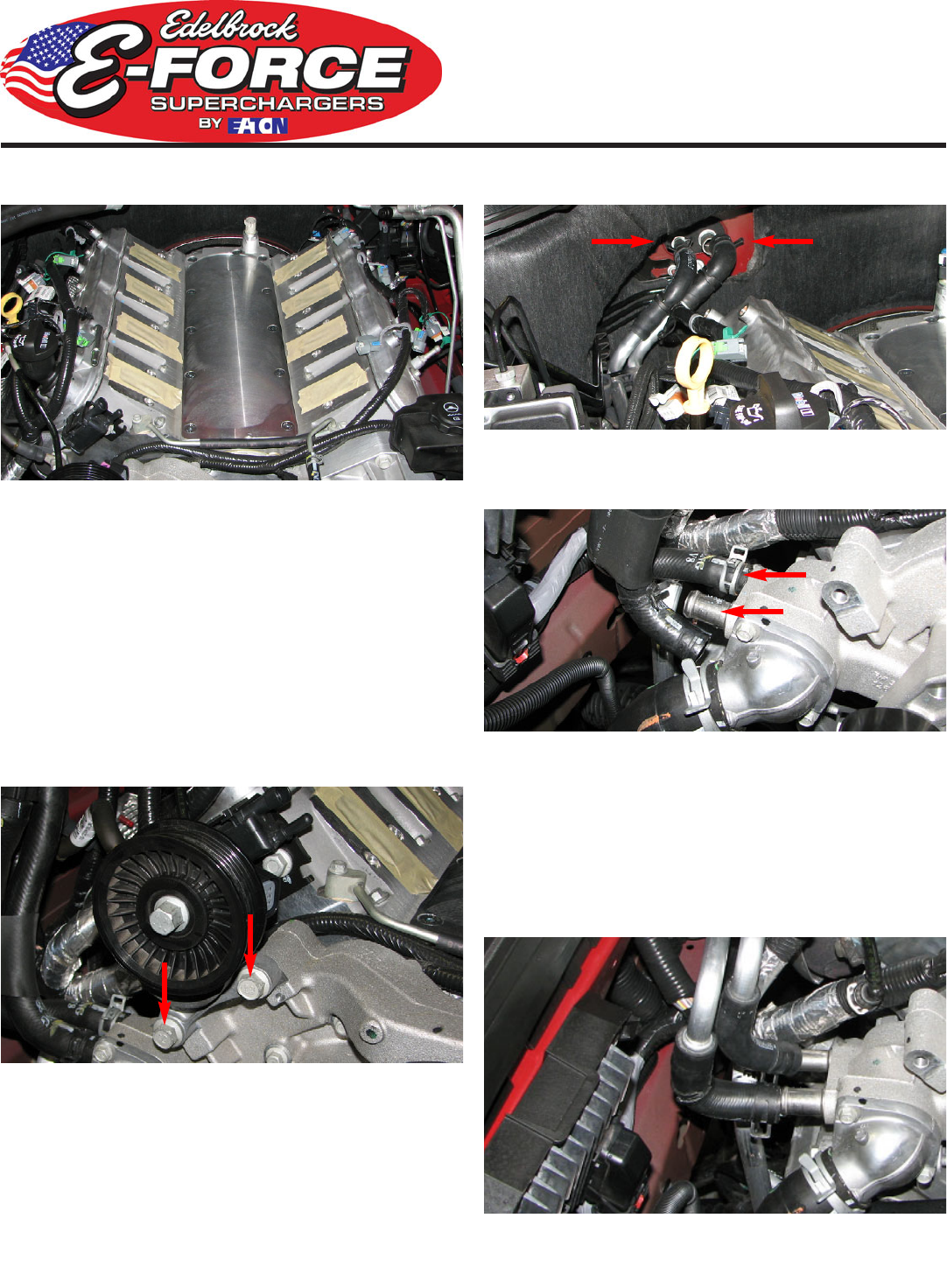

46. Install the new valley plate on the engine carefully so
as not to dislodge the o-rings and line up the bolt holes.
47. Apply anti-seize to the underside of the heads of the
eleven countersunk bolts from Bag #3 then use a 5mm
Allen tool to install them in the plate. Torque them to 18
ft-lbs from the center out.
48. Apply thread sealant to the threads of the oil pressure
sensor then use a crescent wrench to install the sensor in
the new valley plate. Reconnect the oil pressure sensor
electrical connector.
49. Use a 15mm socket to remove the two bolts retaining
the belt tensioner.
50. Place a drain pan below the radiator petcock on the
driver side. Remove the radiator cap then loosen the
petcock to drain the engine coolant.
51. Disconnect the two heater hoses from the firewall
using a shop rag to absorb any excess coolant.
52. Disconnect the two heater hoses from the water
pump using a shop rag to absorb any excess coolant.
53. Install the supplied Heater Core Hose Assembly to the
firewall fittings using the supplied hose clamps. Route the
lines between the engine oil dipstick and the fuse box to
the fittings on the water pump and secure them with the
supplied hose clamps. Note that the hose closer to the
passenger side of the firewall will be routed to the fitting
closer to the front of the vehicle and vice versa.
