178 Removing and replacing parts Q1860-90918
500-sheet feeder feed roller
1 Place the feeder upside down on the work surface.
2 Pinch the feed roller tab and slide the feed roller (callout 1) off of the shaft.

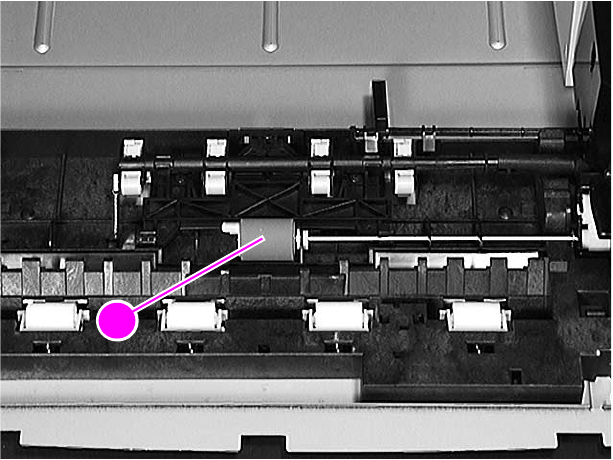

Figure 116. 500-sheet feeder feed roller removal
2
1
