Q1860-90918 6 Removing and replacing parts 169
Pickup roller
1 Remove the optional 250-sheet tray.
2 Set the feeder upside down on the work surface.
3 Press the locking tab (callout 1) on the white, side cam (callout 2), and slide the cam and the
black bushing (callout 3) away from the roller (callout 4).
4 Slide the roller between the two cams, rotate the roller 180 degrees, and then remove the
roller from the shaft.

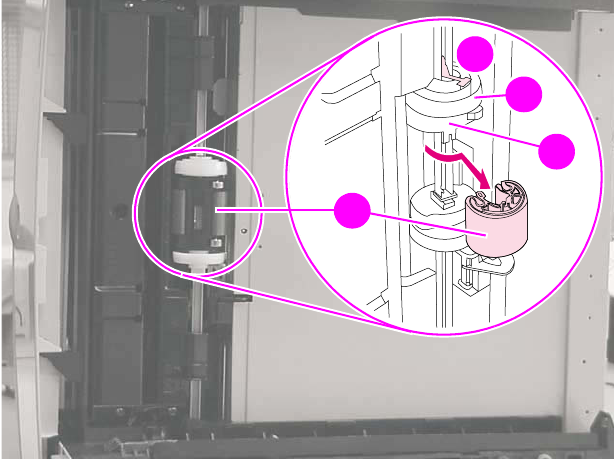

Figure 103. Optional 250-sheet feeder pickup roller removal (bottom of the printer)
To reinstall
Orient the pin on the roller so that it lines up with the hole in one of the side bushings. Slide the
cam toward the roller until the tab snaps into place.
2
2
1
2
2
2
3
4
