Left front corner cover installation
1 Install the tray indicator assembly.
2 Depress the indicator so that the tray indicator limit tab (callout 1) is between the upper limit
stop (callout 2) and the lower limit stop (callout 3), and then reinstall the cover.
Note Make sure that the tray indicator operates correctly.

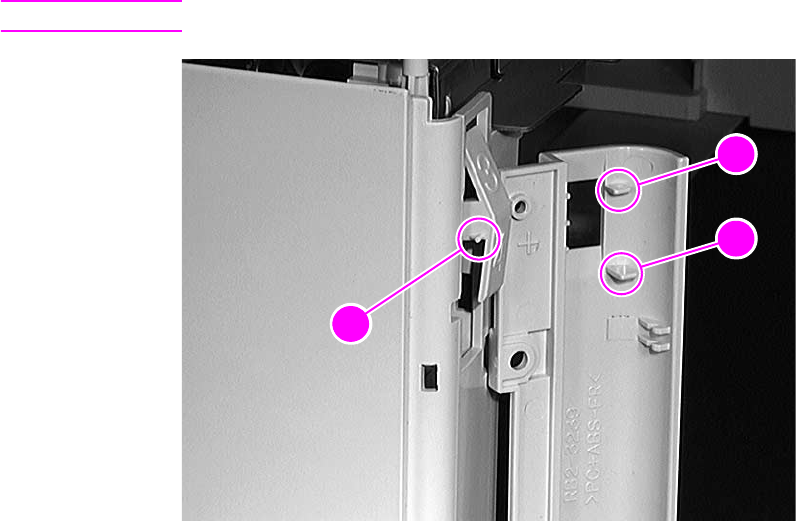

Figure 115. Installing the left front corner cover
