110 Removing and replacing parts Q1860-90918
Installing EIO cards or mass-storage devices
Note EIO accessories are not available for the HP LaserJet 5100Le printer.
Turn off the printer before installing the EIO card or the mass-storage device.
See figure 35 for the orientation and location of the EIO card or optional mass-storage device,
such as a hard disk.
Use HP Jetdirect to delete files from a mass-storage device. For more information, see the
printer software help.

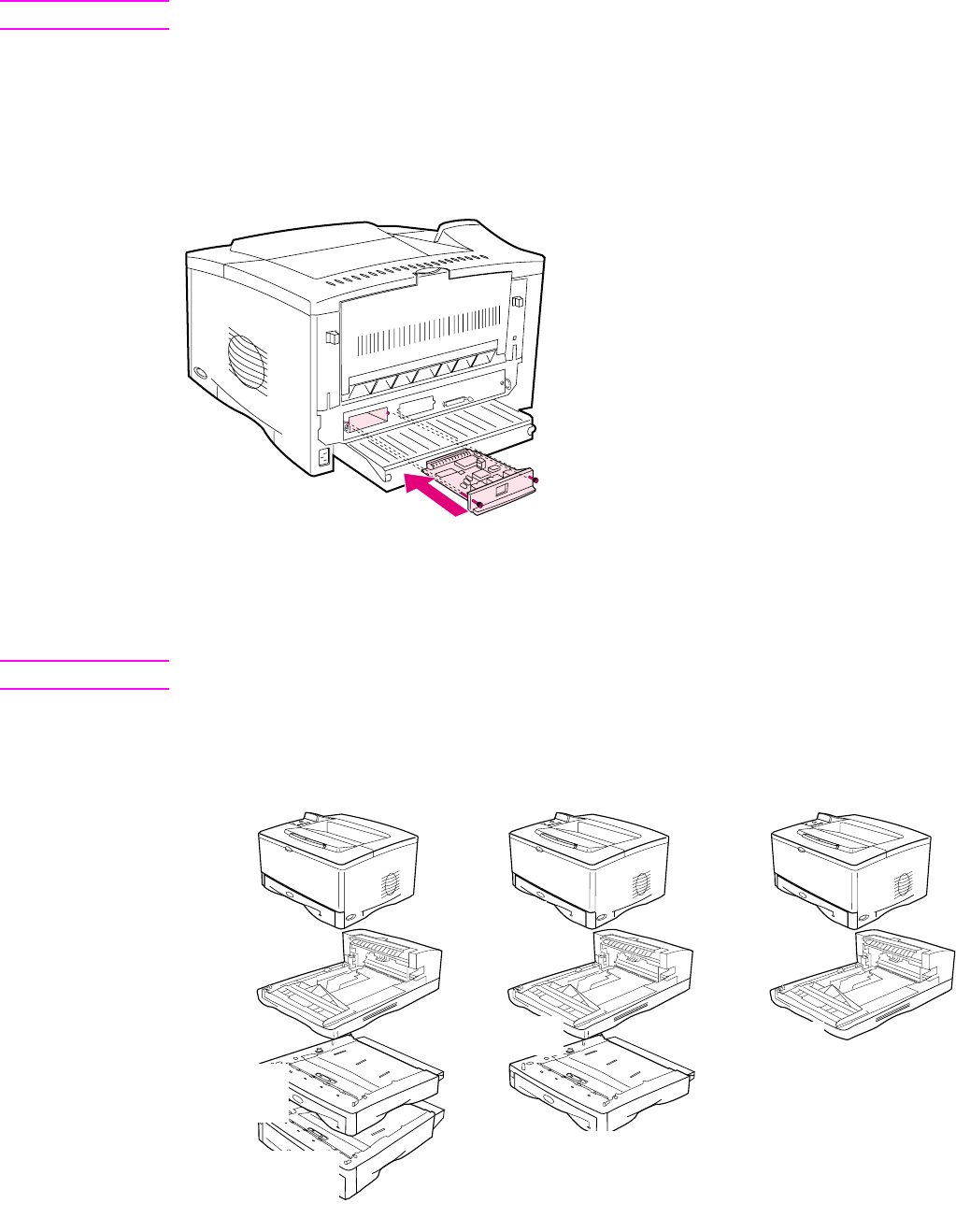

Figure 35. Installing EIO cards or mass-storage devices
Paper-handling accessories
Note Paper-handling accessories are not available for the HP LaserJet 5100Le printer.
For the initial installation of accessories, see the documentation that comes with each accessory.
Place the duplexer on top of any optional trays, and then place the printer on top of the duplexer.
Installation configurations are shown in figure 36.
Figure 36. Paper-handling accessories configurations
Printer
Duplexer
Printer
Duplexer
Printer
Duplexer
Optional 250-sheet
feeder or optional
500-sheet feeder
Optional 250-sheet
feeder or optional
500-sheet feeder
Optional 250-
sheet feeder
