667 Size 80 and 100 Actuators
Instruction Manual
Form 1432
December 2007
21

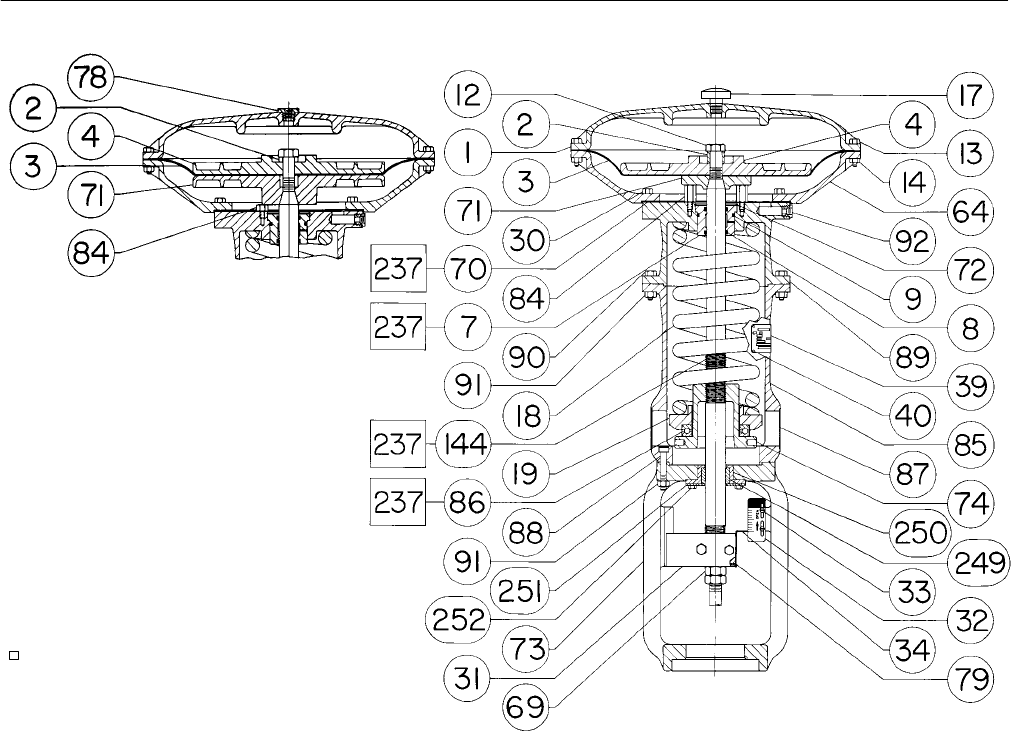

Figure 6. Size 80 Type 667 Actuator
NOTE:
KEYS 243, 244, 245, AND 246
ARE NOT SHOWN.
50A8597-D / DOC
50A8599-C
APPLY LUB/SEALANT
TOPĆLOADED ACTUATOR DETAIL
