3D Position Fix
Tracking 7....
Status of
position fix
Number of
satellites being
tracked
Current location
indicator
Satellite icon
Signal level
bar graph
Satellite
identifier
Satellite Status Screen
The Satellite Status screen is a handy way to visually see just how well the eXplorist is
tracking and receiving satellite signals.
Highlights of the
Satellite Status screen:
• Type of position fix as well as the number of satellites being tracked is displayed. [2D
Position Fix requires three satellites; a 3D Position Fix requires four satellites or more.]
• Graphical indication of the location of the satellites, as well as their assigned number
identifiers, are shown.
• Bar chart supplies information as to the signal strength for each satellite. [A hollow bar
indicates that the satellite is being tracked but has not been locked on yet, a solid bar
indicates that the satellite has been locked on.

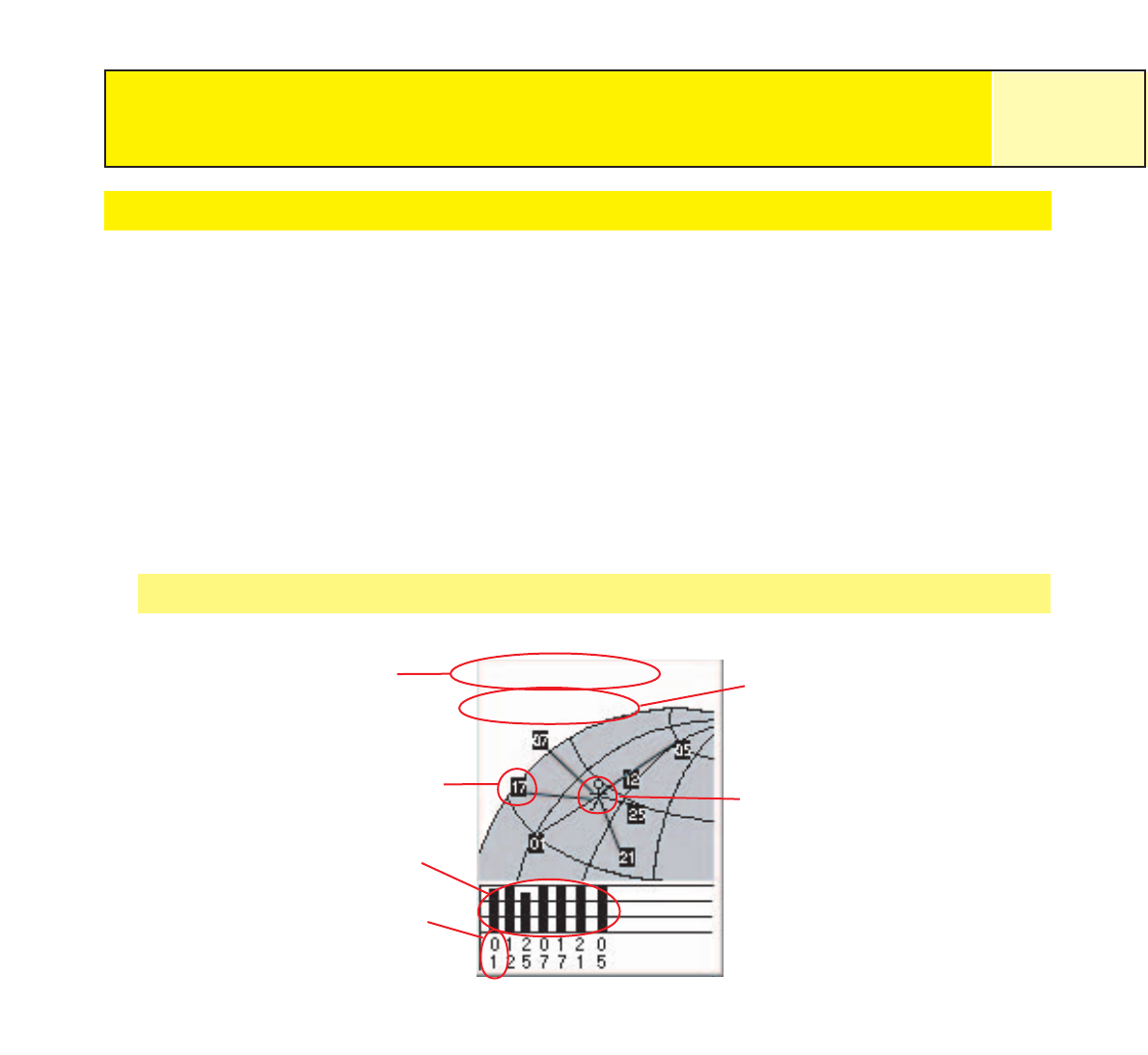

Satellite Status Screen Overview
