ACT2000
Power Harness Electrical Hook-Up
POWER SUPPLY ACT2000
Digital Harness Electrical Hook-Up
PWR (RED)
PWR [AUX] (WHT/RED)
PWR RTN (GRN)
PWR RTN [AUX] (WHT/GRN)
Shield No Connection
DEMAND (BRN)
DEMAND RTN (WHT/BRN)
Shield No Connection
RUN (VIO)
RUN RTN (WHT/VIO)
Shield No Connection
RESET (GRY)
RESET RTN (WHT/GRY)
Shield No Connection
MTR CURRENT (BLU)
MTR CURRENT RTN(WHT/BLU)
Shield No Connection
POSITION (YEL)
POSITION RTN(WHT/YEL)
Shield No Connection
FAULT ALARM (ORN)
FAULT RTN (WHT ORN)
Shield No Connection
OVERTEMP ALARM (BLK)
OVERTEMP RTN (WHT/BLK)
Shield No Connection
Shield No Connection
SERIAL TX OUT (WHT/ORN/BLU)
SERIAL RX IN (WHT/ORN/YEL)
SERIAL RTN (WHT/ORN/GRN)
Shield No Connection
+120VDC
-120VDC Return
Power Gnd Shield
Demand
Return
Shield Gnd
Run
Return
Shield Gnd
Rese
t
Return
Shield Gnd
Motor Curren
t
Motor Current RTN
Shield Gnd
Position
Position RTN
Shield Gnd
Fault Alarm
Fault Alarm
Shield Gnd
Over Temp Alarm
Over Temp Alarm
Shield Gnd
Shield Gnd
Serial RX in
Serial TX ou
t
Serial RTN
Shield Gnd
ENGINE CONTROLLER ACT2000

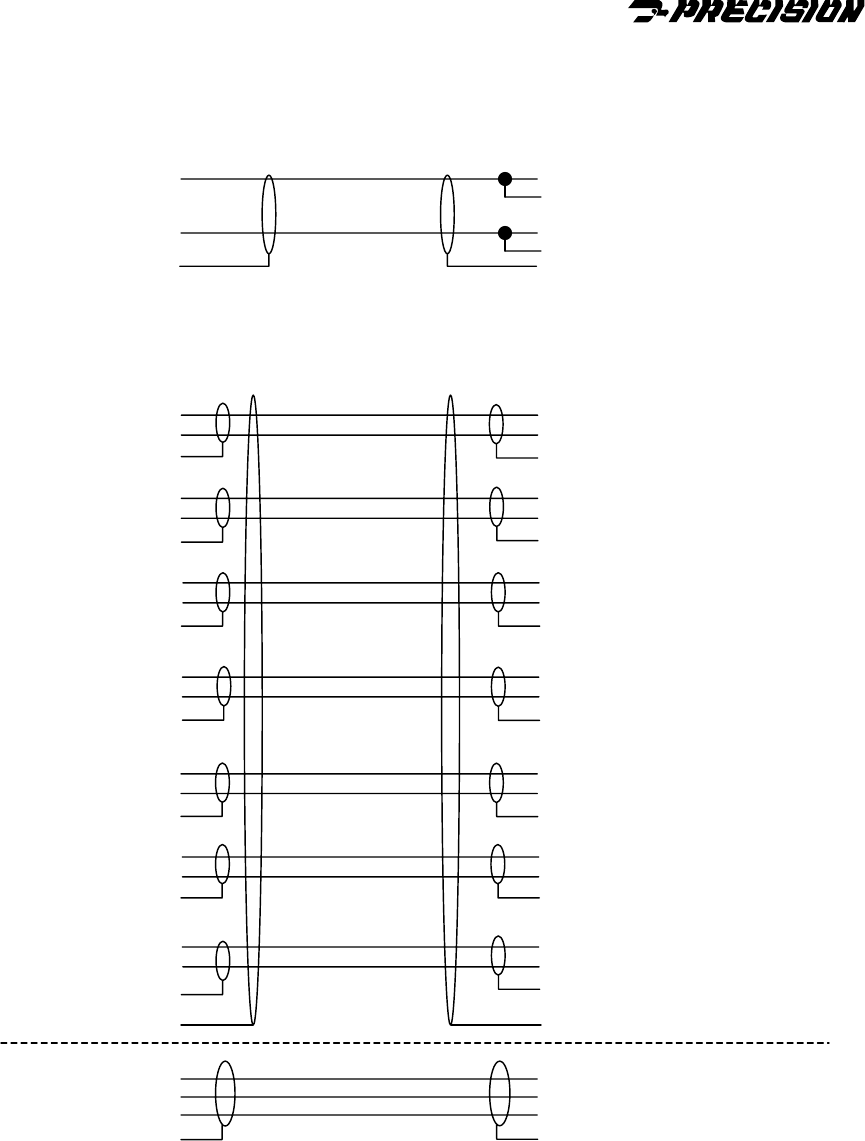

Figure 3-3: ACT2000 Wiring Diagram
3-8
