3
2. BASIC OPERATION
2.1 Control Description
SELECT
CANCEL
MENU
EBL/VRM
SELECT
EBL/VRM
CONTROL
ST BY
TX
GUARD
TLL
A/C AUTO
BRILL
POWER
ACQ
ENTER
RANGE
GAIN
HM-OFF
A/C SEA
F1
A/C RAIN
F2
Brief press:
Displays the data of target
selected with the cursor.
Long press:
Terminates plotting of the target
selected with the cursor.
Omnipad
Shifts cursor, VRM and EBL;
select items and options on
menu.
(1) Acquires the target selected
with the ominipad.
(2) Registers selection on
menus.
Sets guard zone area.
Selects radar range.
Enables/erases
EBL1/EBL2/EBL3/EBL4.
Outputs target position data.
Automatically reduces sea and
rain clutters.
Sets radar in stand-by;
transmits radar pulse.
Adjusts display brilliance.
Turns power on/off.
Opens/closes menus.
Selects
EBL1/EBL2/VRM1/VRM2.
Control:
Adjusts sensitivity.
Switch:
Temporarily erases heading
line (and north mark if
displayed).
Control:
Reduces sea clutter.
Switch*:
(Long press) Shifts your vessel’s
position to cursor location.
(Brief press) Doubles size of
area between your vessel and
location selected by cursor.
Control:
Reduces rain clutter.
Switch*:
Displaces the EBL origin.
Lights when the economy mode
is on.
*Default switch function.

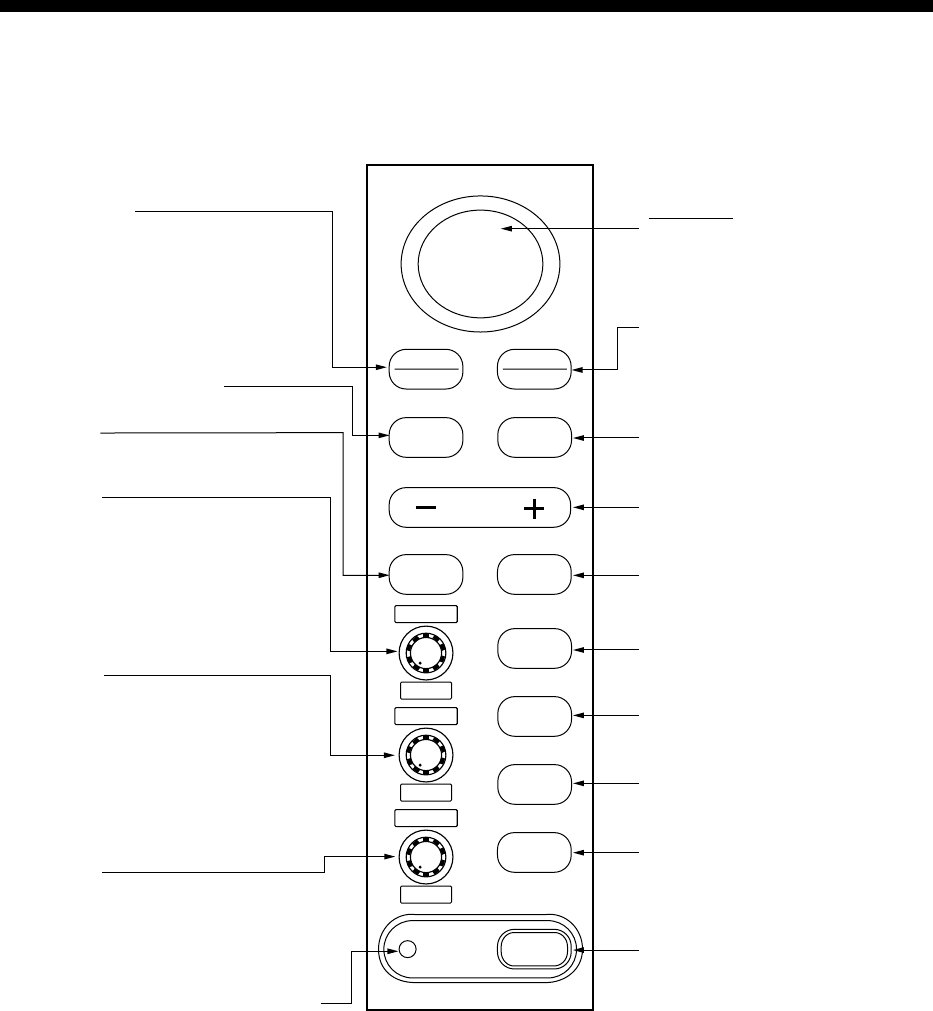

Figure 2-1 Control panel
