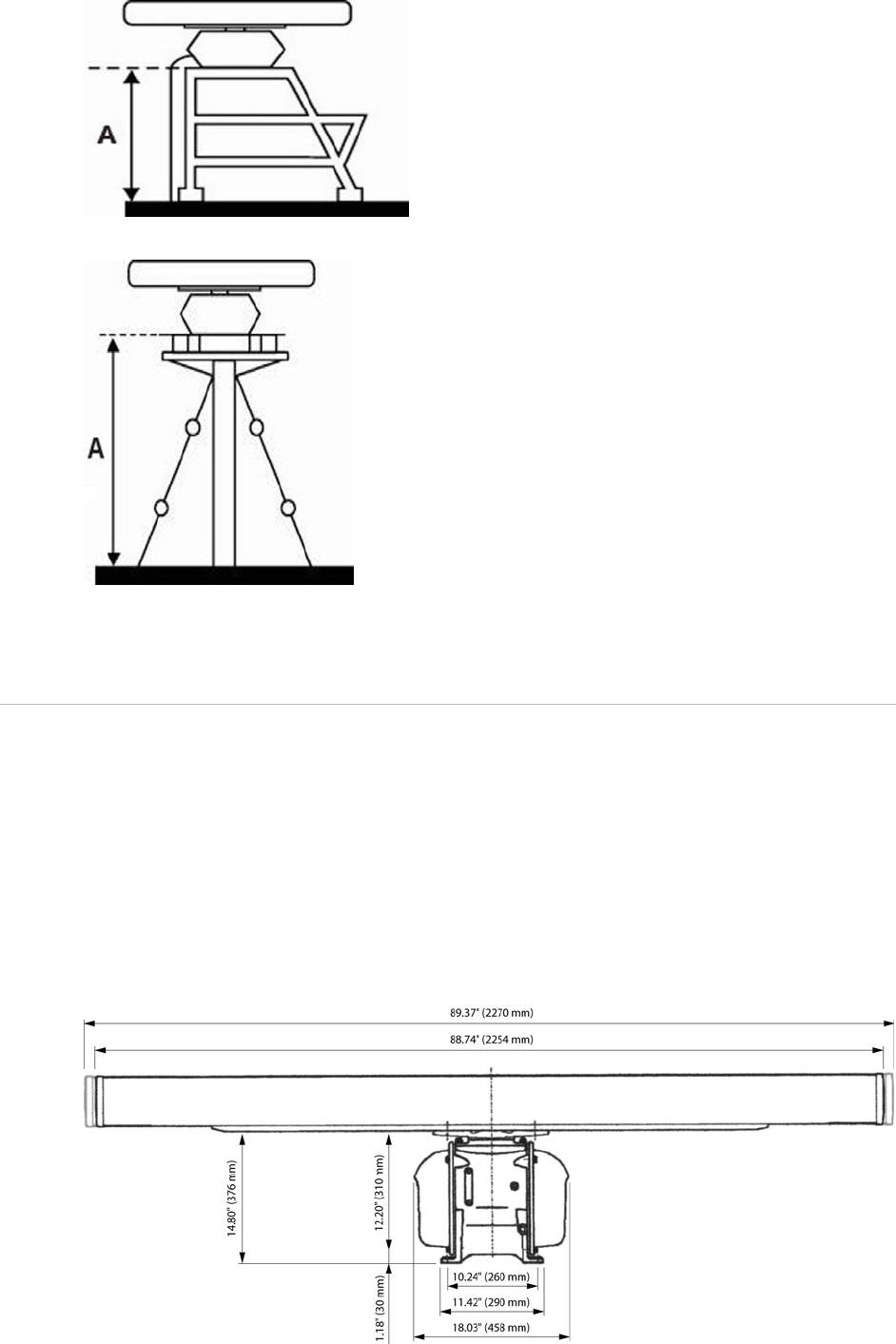

If the trestle height (A) is less than 2 m high, use the angle joint method as shown:
If the trestle height (A) is more than 2 m high, install a radar mast secured with guy wires as shown:
11.6 25 kW radar dimensions
The 25 kW radar has an open array with a rotation diameter of 89.4" (2270 mm). Ensure that the open
array will be able to rotate freely and take this diameter into account when calculating the
recommended distances from other equipment.
Before starting the installation, use the drilling template to identify the:
cable inlet
safety switch
Earth bolt
front and rear of the scanner.
The radar dimensions are shown:
Northstar 25 kW Radar Installation Manual
20
