412
Practical hints
Fuses
Fuse boxes in passenger compartment
There are two fuse boxes. One fuse box is
located in the dashboard on the front pas-
senger side. An additional fuse box is lo-
cated under the right rear seat.

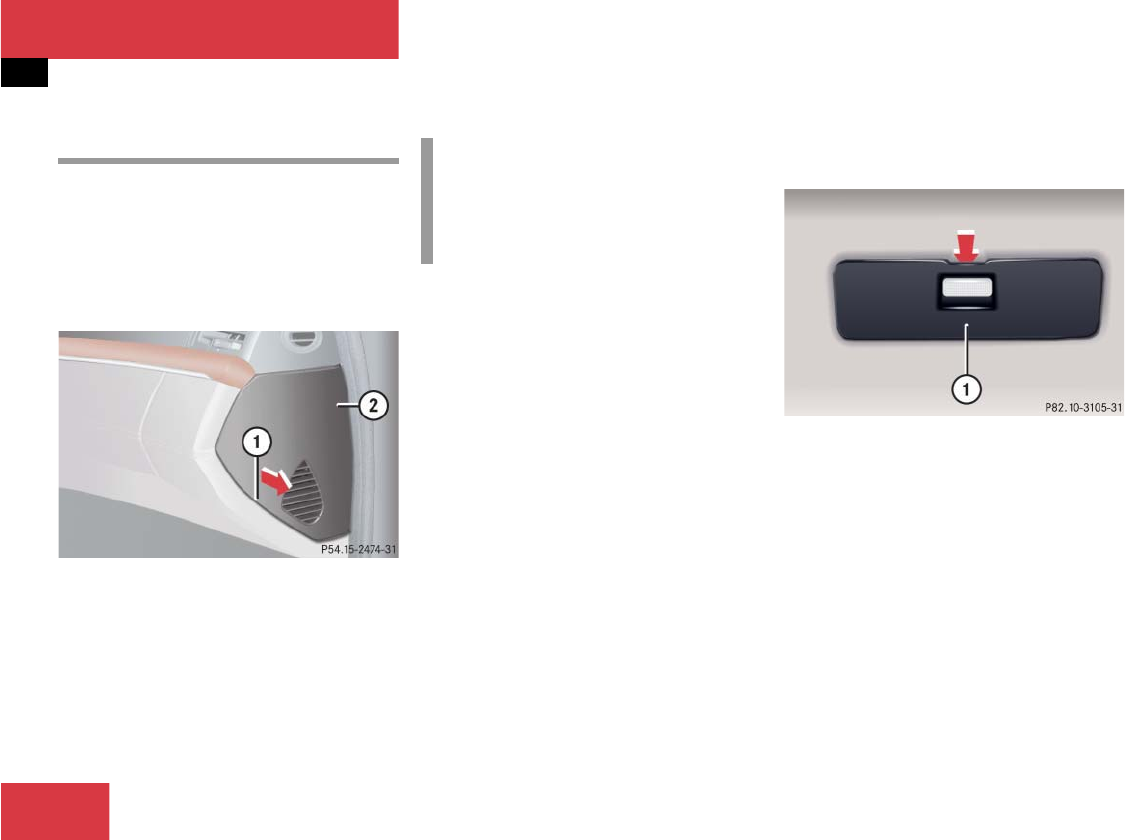

Fuse box in dashboard
1 Recess in the cover
2 Cover
Opening
̈ Open the front passenger door.
̈ Insert flat, blunt object as a lever in
recess 1 on the edge of cover 2.
̈ Loosen cover 2 from the dashboard
using lever.
̈ Using your hands, pull cover 2 in the
direction of the arrow and remove.
Closing
̈ Hook cover 2 into the opening at the
front.
̈ Press cover 2 back on until it engag-
es.
Fuse box in the rear passenger
compartment
1 Cover
Opening
̈ Pull cover 1 away from fuse box in di-
rection of arrow.
̈ Remove cover rearward.
Closing
̈ Press cover back on until it engages.
!
Do not use sharp objects such as a
screw driver to open the fuse box
cover 2 in the dashboard, as this
could damage it.
