Delphi NAV200
56

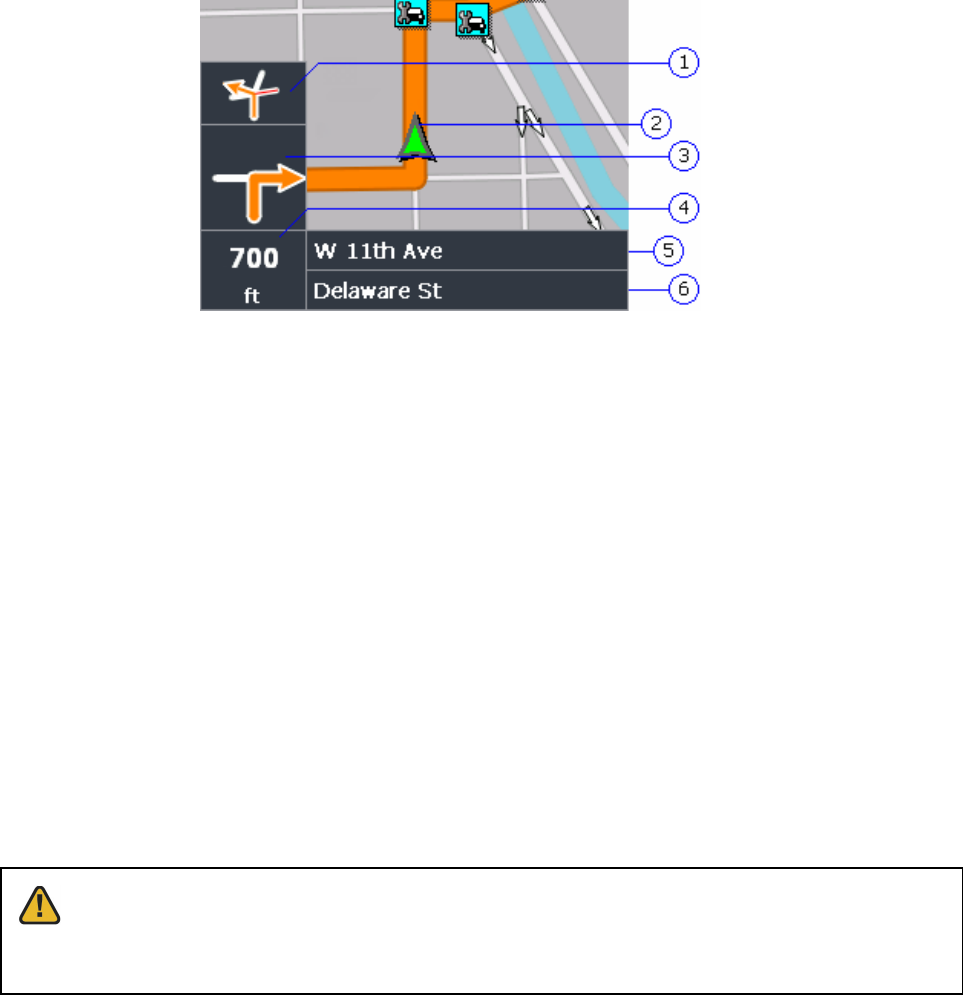

Representation of the Map in Navigation Mode
The following fields containing useful information are displayed in Navigation
mode:
Field 1: If there are two turns coming quickly after each other, the small
upper arrow field indicates the second upcoming turn.
Field 2: The green arrow indicates your current position on the map.
Since the displayed sector changes continually, your position is centered.
(Exception: Frozen map mode.)
Field 3: The larger arrow indicates the next turn.
Field 4: The distance field indicates the distance to the next turn. As you
approach, the number changes to a distance bar. As more yellow bars are
displayed, the closer you are to the turn.
Field 5: The upper bar indicates the next street where you should turn.
Field 6: The lower bar indicates the name of the current street where you
are driving.
Other useful information can include:
Warning: Information contained in the cartographic material can be incorrect
depending on current conditions, roadwork, etc. Obey all current applicable traffic
laws.
