96 Removal and replacement EN
To reinstall
After placing the Pickup Roller shaft through on the left side, line up the Idler Roller tabs while
repositioning the right side. Rock the shaft back and forth until the Pickup Roller and the Idler Roller
tabs are correctly reinstalled.
Note It is important that the Pickup Roller is placed back in with the two Idler Roller tabs up, so that they fit
into the underside of the metal chassis behind the Laser/Scanner assembly (Figure 6-25).

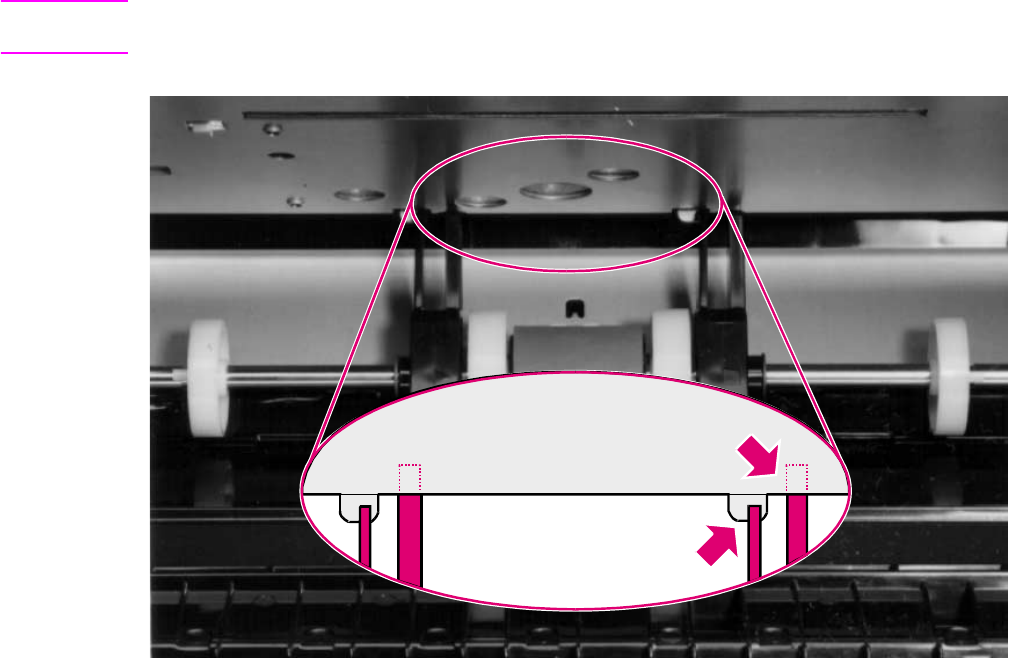

Figure 6-25 Paper Pickup Roller Assembly replacement (inside/front view)
