Left-hand headlamp: fasten the washer
fluid reservoir (Y page 110).
X
Install the headlamp cover (Y page 109).

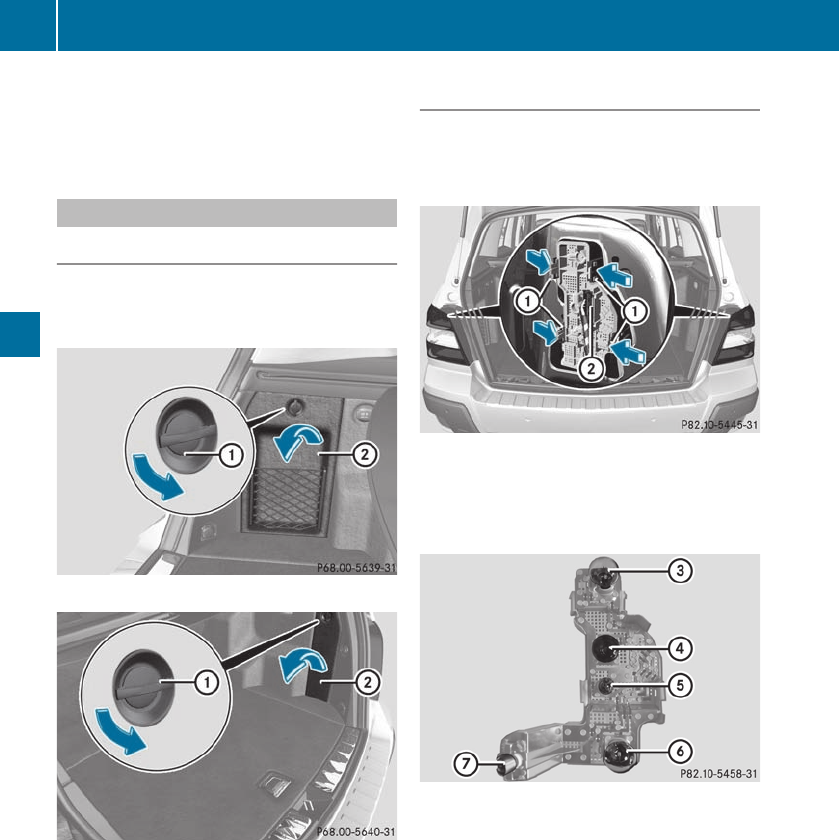

Changing the rear bulbs
Opening/closing the side trim
You must open the side trim panel in the
cargo compartment before you can change
the bulbs in the tail lamps.
Left-hand side trim panel
Right-hand side trim panel
X
To open: turn release knob : 90° in the
direction of the arrow and remove side trim
panel ;.
X
To close: insert side trim panel ; and turn
release knob : 90° in the opposite
direction to the arrow.
Tail lamp
X
Switch off the lights.
X
Open the cargo compartment.
X
Open the side trim panel (Y page 112).
X
Pull out connector ;.
X
Press retaining lugs : simultaneously in
the direction of the arrow and pull the bulb
holder out.
Bulb holder without LED turn signal lamp
=
Tail lamp/braking lamp
?
Turn signals
A
Backup lamp
B
Rear fog lamp/tail lamp
C
Side marker lamp
X
Lightly press the corresponding bulb into
the holder, turn it counter-clockwise and
remove it from the bulb holder.
X
Insert the corresponding new bulb into the
bulb holder and turn it clockwise.
X
Attach the bulb holder and press firmly.
The retaining lugs on the bulb holder
engage audibly.
112
Changing bulbs
Lights and windshield wipers
