Retractable hardtop
179
X
Open zipper 2 completely while the lug-
gage cover is closed.
X
Open luggage cover 1.

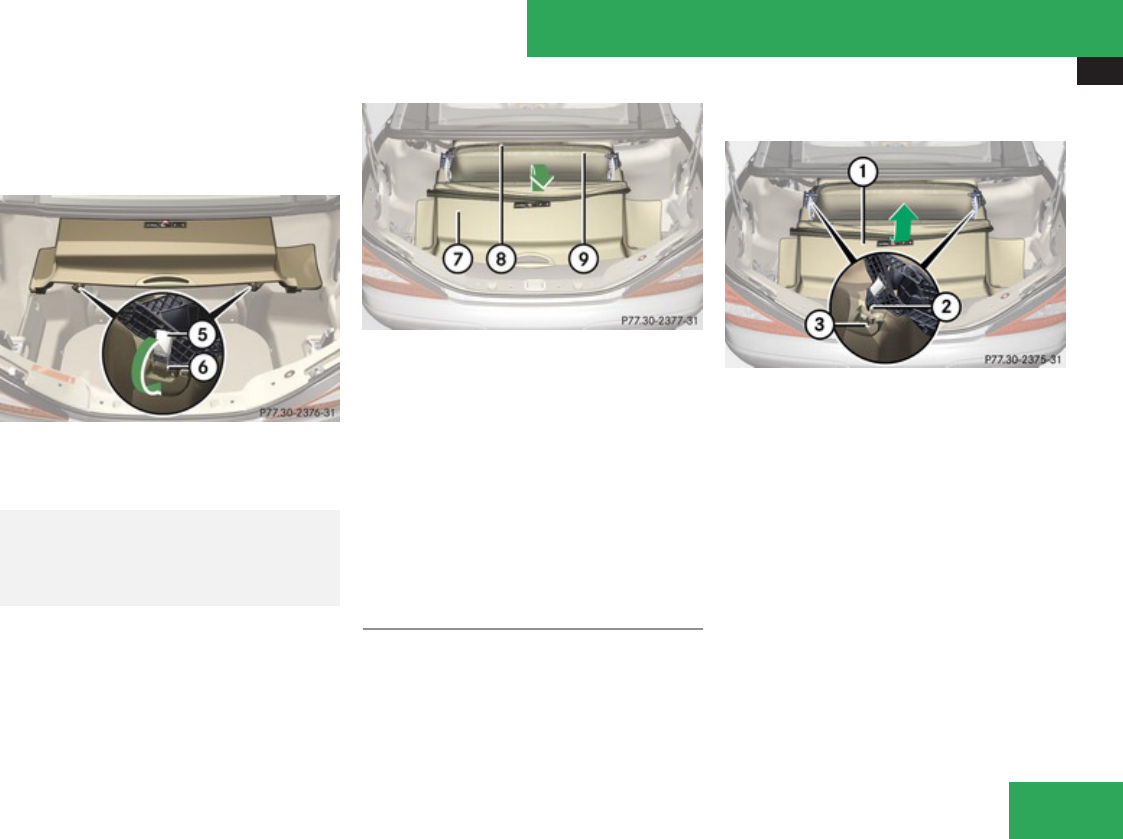

Closed luggage cover
5
Tensioning clasp
6
Retainer spring
G
Warning!
Only open the tensioning clasps when the
luggage cover is opened. You could other-
wise be injured.
X
Open tensioning clasps 5 by pulling them
downward.
X
Unhook retainer springs 6 from holders
and flip retainer springs all the way up.
7
Luggage cover
8
Cloth end
9
Cloth holder
X
Carefully tilt luggage cover 7 in direction
of arrow towards rear of trunk.
X
Roll up front end of cloth 8 in the trunk
towards the front and fasten it in place in
front of cloth holder 9.
X
Remove luggage cover 7 from the trunk.
Installing
!
Before installing the luggage cover, make
sure that the cloth end is in front of the
cloth holder. Otherwise, it could be dam-
aged.
X
Carefully place luggage cover in trunk.
1
Luggage cover
2
Hook
3
Guide rail
X
Insert luggage cover 1 into guide rails
3 on both sides using hooks 2.
X
Tilt luggage cover 1 forward in direction
of arrow.
X
Fold retainer springs of tensioning clasps
downward and clip them into holders on
both sides (Y page 179).
X
Close tensioning clasps on both sides by
pressing them upward.
X
Pull handle of luggage cover towards the
rear.
X
Clip eyelets onto side trim panels.
