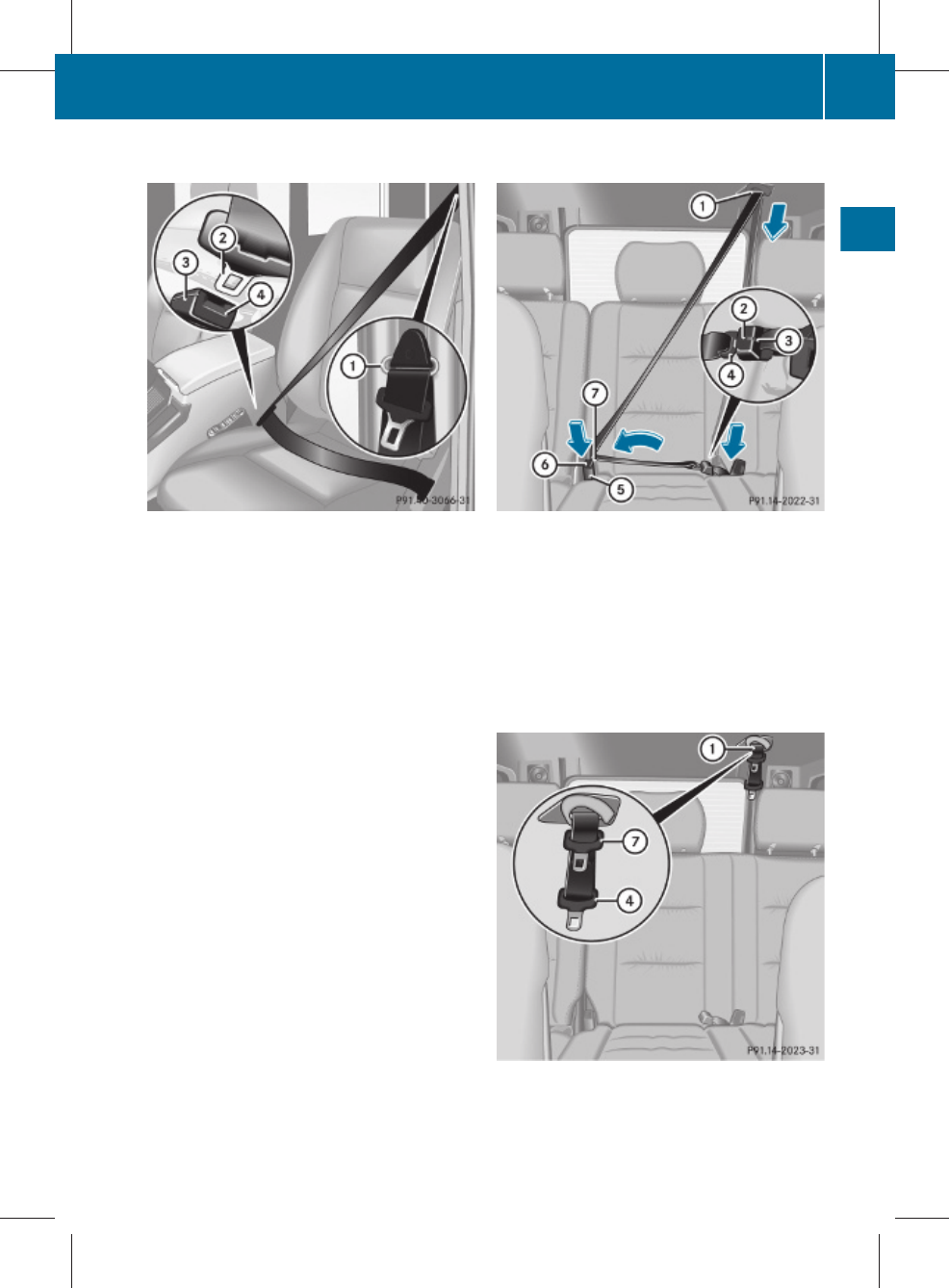

Front seat belts and rear outer seat belts
X
With a smooth motion, pull the seat belt out
of seat belt outlet :.
X
Place the shoulder portion of the seat belt
across the top of your shoulder and the lap
portion across your hips.
X
Push latch plate ; into buckle = until it
clicks.
X
If necessary, adjust the seat belt to the
correct height (Y page 42).
X
If necessary, tighten the lap portion to a
snug fit by pulling shoulder portion up.
To release the seat belt with seat belt relase
button ?, see (Y page 43).
Rear center seat belt
Overview
:
Attachment for latch plates
;
Buckle for fixed latch plate
=
Release button for fixed latch plate
?
Fixed latch plate
A
Buckle for free-sliding latch plate
B
Release button for free-sliding latch plate
C
Free-sliding latch plate
X
Pull both latch plates ? and C out of
attachment :.
The seat belt has two latch plates: Latch
plate ? is fixed at the end of the seat belt.
Occupant safety
41
Safety and security
