IN1606 Scaling Presentation Switcher • Internal Web Pages 65
Device Settings Page
The Device Settings page allows configuration of Screen Saver settings, on-screen display
timeout, HDCP notification, and video and sync muting. Click the Device Settings button
on the Global Navigation Bar to open the Device Settings page.

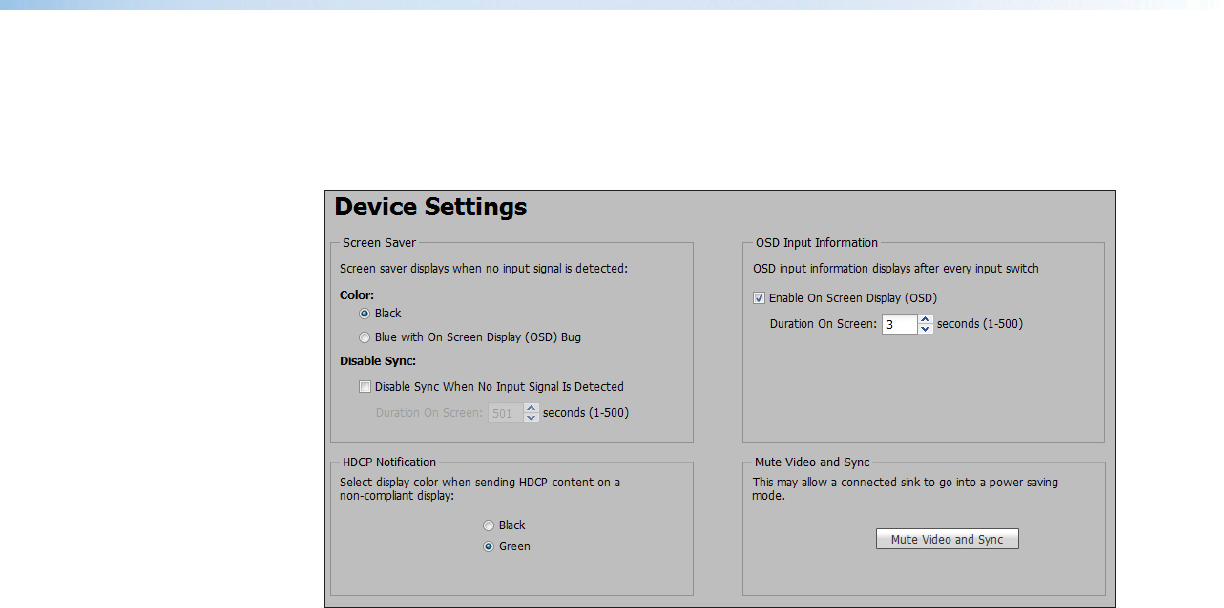

Figure 38. Device Settings Page
Screen Saver section
When no active video is detected on the selected input, the screen saver mode is activated.
The output sync can be disabled after a user-set duration, which allows display devices to
go into a low power, standby state.
1. Click one of the radio buttons to select a color to display when the screen saver is
enabled.
• Black — Mutes video output to black for a set duration before disabling output
sync (default).
• Blue with On Screen Display — Displays a blue background with a moving
OSD bug that indicates “IN1606: Input <#> No Signal” for a set duration before
disabling the output sync.
2. Select a Disable Sync duration.
• Select the Disable Sync When No Input Signal Is Detected check box to
disable the IN1606 output sync after a set duration without an active input. When
selected, the Duration On Screen field becomes available.
• In the Duration On Screen field, enter a value in the field or click the Up and
Down arrows to specify a duration to wait before disabling output sync during
inactivity.
