Image Settings Page
From this page, signal sampling and picture control settings can be adjusted, user and input
presets can be saved and recalled, and overscan settings can be applied. Click the Image
Settings button on the Global Navigation Bar to open the Image settings page.

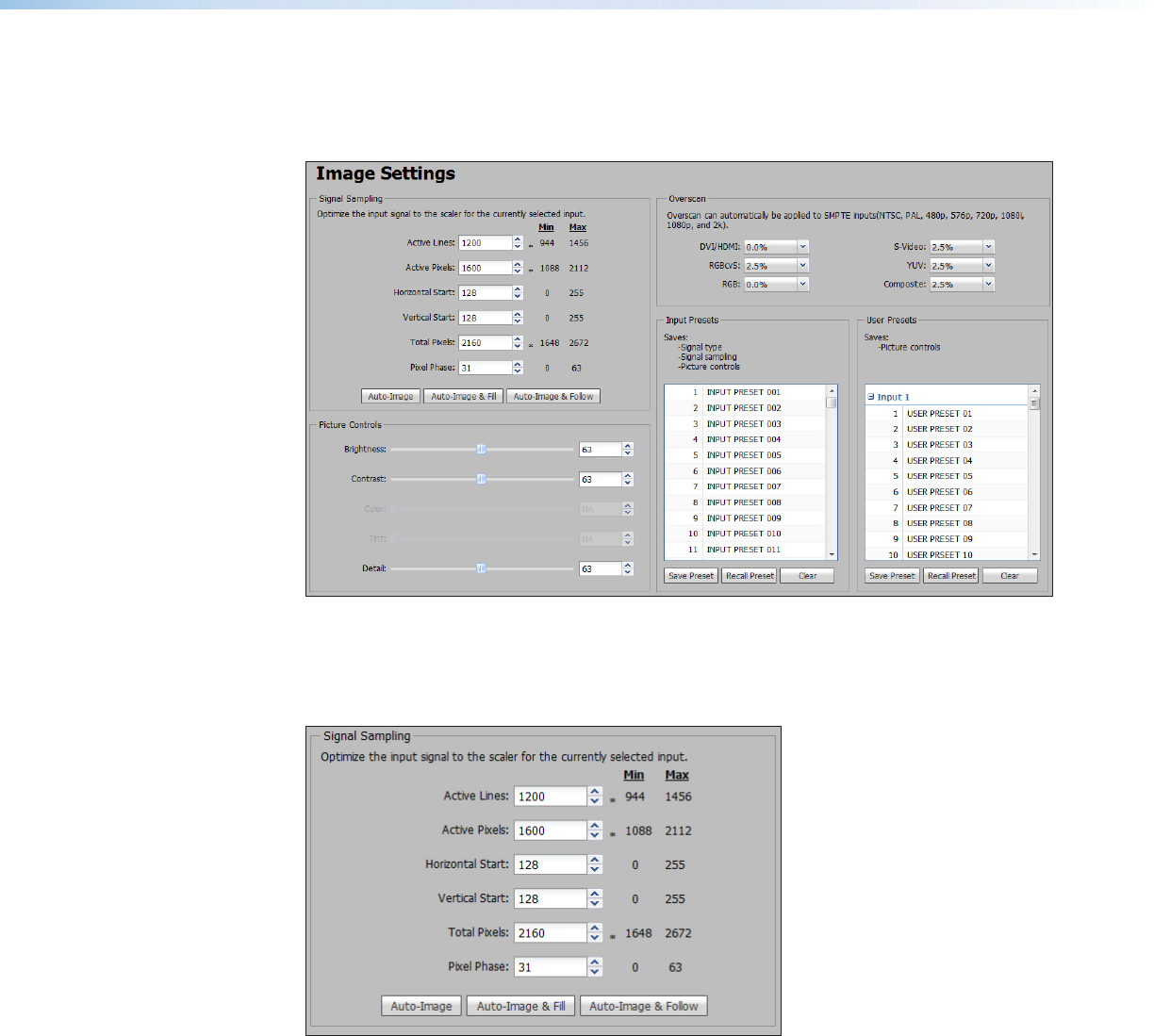

Figure 25. Image Settings Page
Signal Sampling section
Signal sampling optimizes the input signal to the scaler for the currently selected input.
Figure 26. Signal Sampling Section
To manually adjust signal sampling settings, enter a value within the Min and Max values
displayed to the right of each adjustable setting or click the Up or Down arrows. An asterisk
beside a chosen value for a signal sampling setting indicates that it is a default value for the
applied video signal.
To automatically adjust these settings, perform one of the following:
• Click the Auto-Image button to perform a one-time Auto-Image.
• Click the Auto-Image & Fill button to perform a one-time Auto-Image and fill the
entire video output (ignores aspect ratio settings).
• Click the Auto-Image & Follow button to perform a one-time Auto-Image and to
maintain the aspect ratio of the input signal.
