IN1606 Scaling Presentation Switcher • Operation 10
Operation
This section of the guide discusses the operation of the IN1606 device. Topics in this
section include:
• Front Panel Overview
• Powering Up
• Input Selection
• On-Screen Display (OSD) Menu System
• Front Panel Lockout (Executive Modes)
• Reset Modes
Front Panel Overview
VOLUME
SCALING PRESENTATION SWITCHER
IN1606
INPUTS
65431 2
HDCP
SIGNAL
BA
OUTPUTS
ENTER
MENU
CONFIG
213
4
56
INPUTS

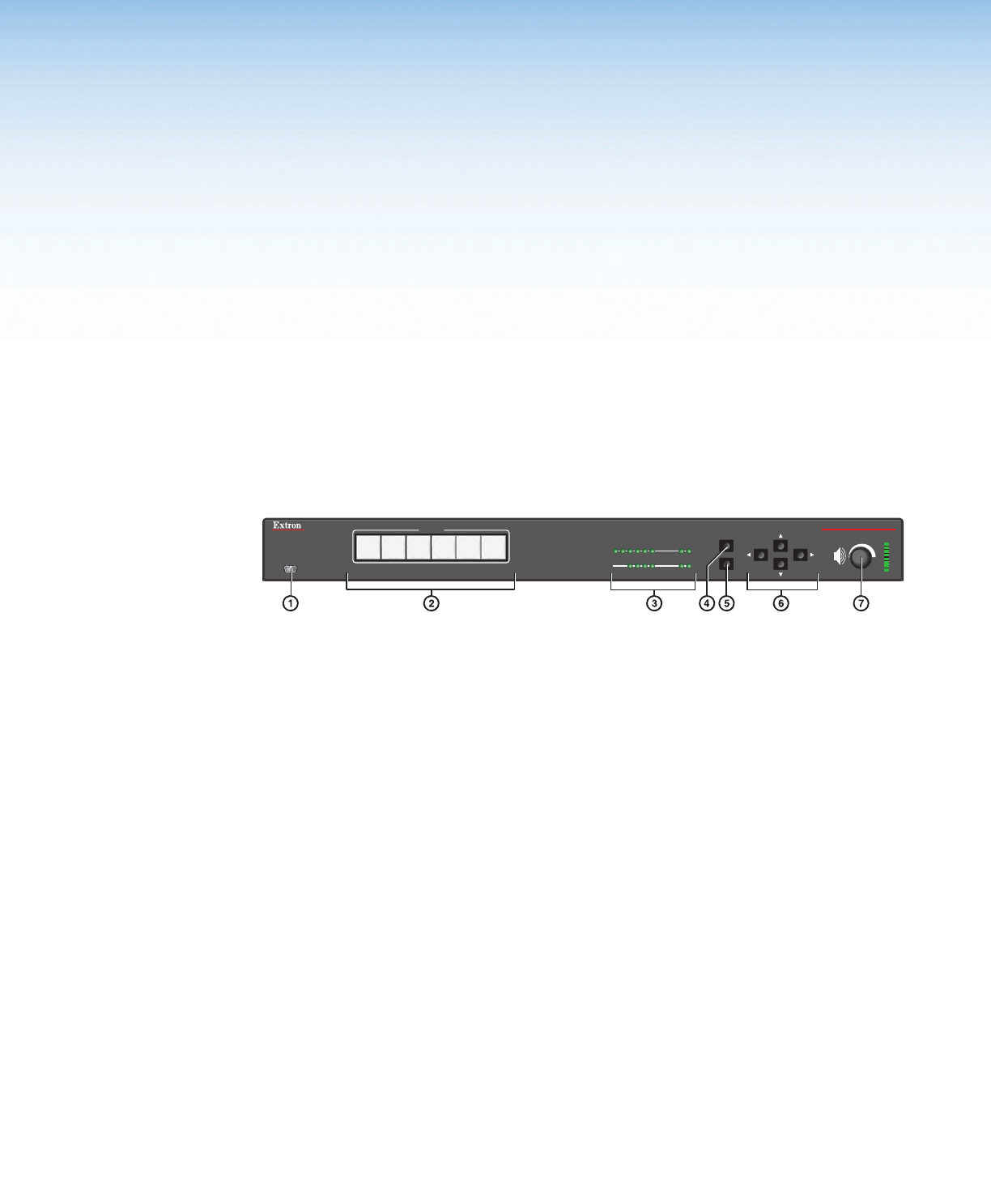

Figure 6. Front Panel Features
a
Config port — Connect a host device to the mini-USB B connector.
b
Input selection buttons — Press one of these buttons to select an input. The buttons
light amber for audio and video selections, red for audio-only selections, or green for
video-only selections.
c
Input and output LED indicators
Input signal LEDs — Light for each input when active video content is detected.
Output signal LEDs — Light green when active video is being output or blink amber
when video output and sync are disabled from the IN1606.
Input HDCP LEDs — Light for each input signal that is HDCP-encrypted. Analog
inputs 1 and 2 cannot be HDCP-encrypted.
Output HDCP LEDs — Light for the active output when it is HDCP-encrypted.
d
Menu button — Press this button to enter or exit the OSD menu system.
e
Enter button — Press this button to select options from the OSD menu system.
f
Direction buttons — Press any of the four buttons navigate the OSD menu system or
change values to adjustable features.
g
Volume knob — Rotate this knob to adjust the variable analog audio output volume.
Volume LEDs — Light in order from bottom to top according to the variable output
audio volume level. There are eight LED steps from 1% (-99 dB) to 99% (-1 dB). Every
quarter turn of the volume knob equates to a one step increment (about 12.5%). When
the volume is muted (0%), the bottom LED blinks. When the volume is at 100%, the top
LED blinks.
