Page 15For technical questions, please call 1-800-444-3353.Item 90154
SAFETYOPERATIONMAINTENANCE ASSEMBLY
2. Todeterminewheretodrill3/8″holesintheStakes,
place the eight Stakes in the eight Stake Clamps (25)
of the Trailer and mark with a pencil. (See Figure N.)
3. Attach the Side Rails and Front End/Back End Rails
totheStakes,using3/8″x3‑3/8″CrossHeadBolts,
3/8″FlatWashers,and3/8″Nuts.
4. Secure the stakes to the Stake Clamps (25) of the
Trailer,using3/8″x2‑3/8″Bolts,3/8″SpringWashers,
and3/8″Nuts.
5. Attach the Connecting Plates to the
Side Rails and Front End/Back End Rails,
using3/8″x1‑3/4″CrossHeadBoltsand3/8″Nuts.
NOTE: For quick folding purposes, you may
not want to bolt down the Stakes permanently
to the Stake Clamps (25) of the Trailer.
3/8″ NUT
3/8″ SPRING
WASHER
3/8″ FLAT
WASHER
3/8″ X 1-3/4″
CROSS HEAD BOLT
3/8″ NUT
3/8″ SPRING
WASHER
3/8″ FLAT
WASHER
3/8″ SPRING
WASHER
3/8″ FLAT
WASHER
3/8″ X 3-3/8″
CROSS HEAD BOLT
STAKE CLAMP
(25)
3/8″ X 2-3/8″
BOLT
CONNECTING
PLATE
FRONT END
RAIL
BACK END
RAIL
SIDE RAIL
SIDE RAIL

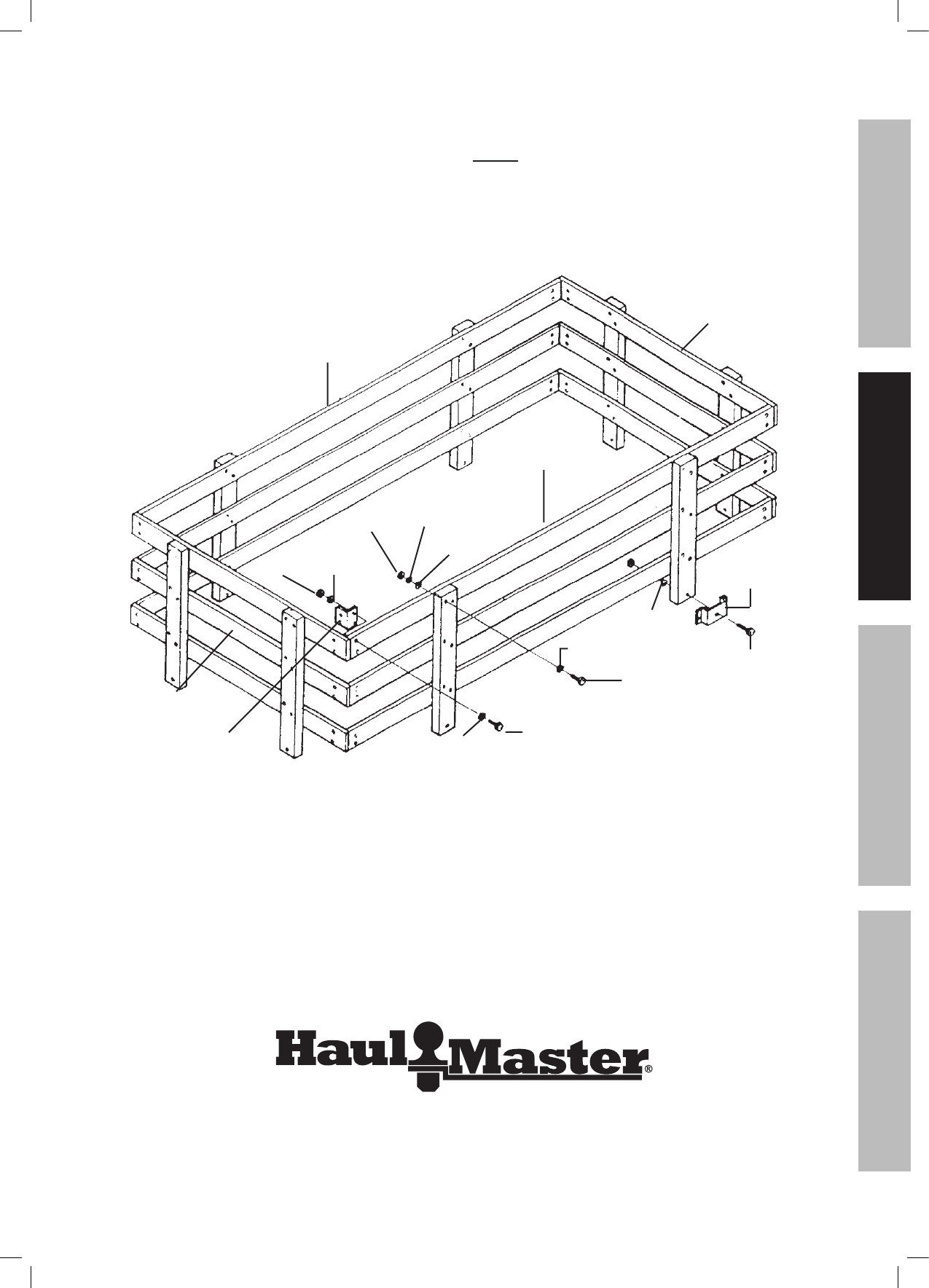

Figure N: Stake Assembly
