Page 12 For technical questions, please call 1-800-444-3353. Item 90154
SAFETY OPERATION MAINTENANCEASSEMBLY
White ground wire
to trailer tongue
4-pin connector
Brown
Brown
Brown tail lamp wires
Black
side marker lights
wire clip
Right light (Green lead)
Wired same as left side
KEY / COLOR CODES
Brown: Tail and side marker lights
Green: Right directional and stop light
Yellow: Left directional and stop light
White: Ground to trailer frame
Indicates wire nut connection
Left light (Yellow lead)
Brown
Yellow
Yellow Green
Brown

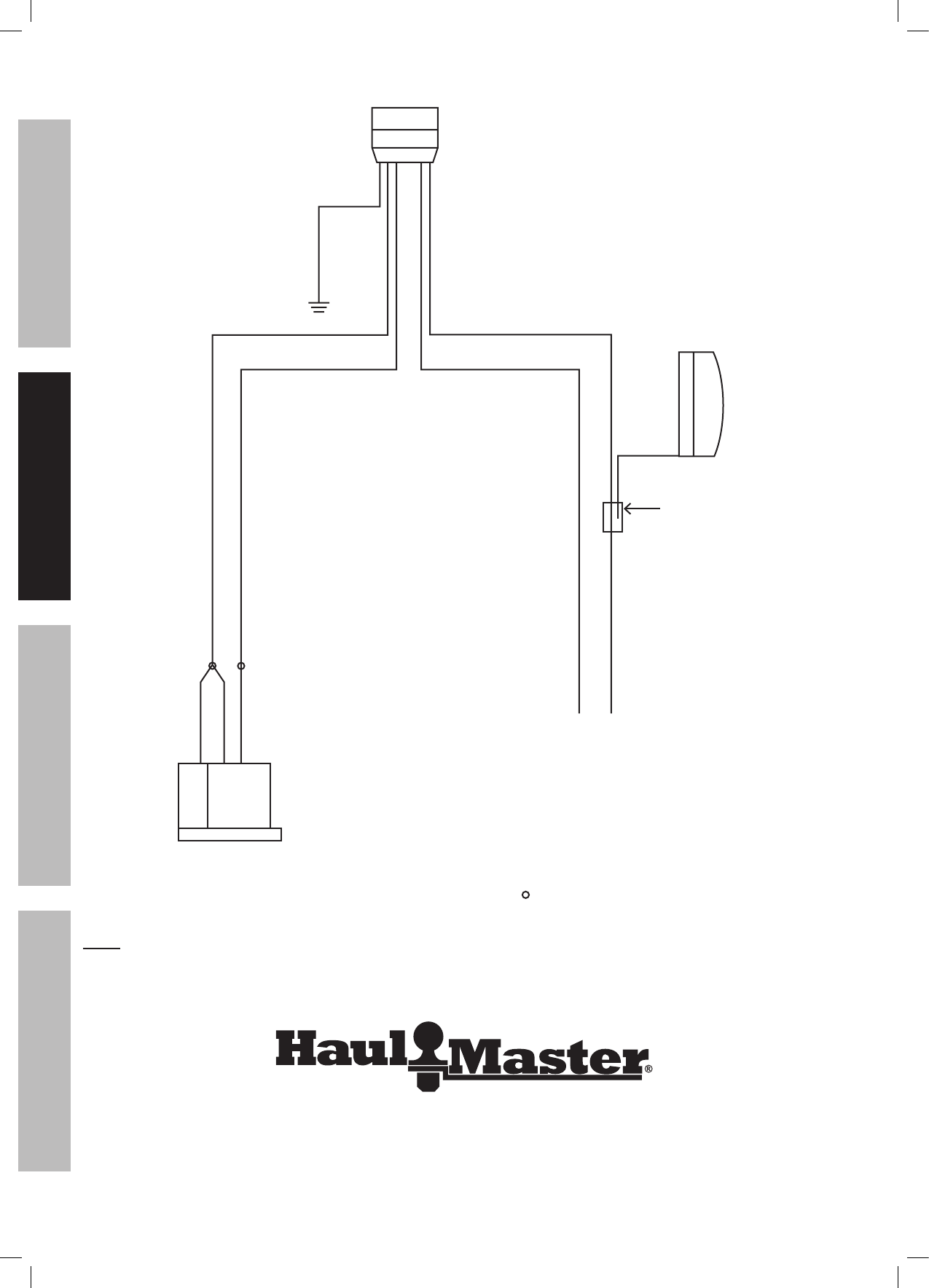

Figure K: Wiring Diagram
Note: Some trailer tail lights will have two leads instead of three.
They connect to the harness leads the same way; brown to brown, color to color.
REV 06e
