Page 14 For technical questions, please call 1-800-444-3353. Item 90154
SAFETY OPERATION MAINTENANCEASSEMBLY
Optional Rail Installation (not included)
Minimum Required Parts:
a. Qty. 8:1.6″x3.5″x27″woodstrips(notincluded).
b. Qty. 6: 0.75″x3.5″x48″woodstrips(notincluded).
c. Qty. 6: 0.75″x3.5″x94.5″woodstrips(notincluded).
d. Qty. 4:0.175″x2″x2″x3.5″SteelAngle(notincluded).
e. Qty. 16:3/8″x1‑3/4″Bolt(notincluded).
f. Qty. 8:3/8″x2‑3/8″Bolt(notincluded).
g. Qty. 48:3/8″x2‑3/8″Bolt(notincluded).
h. Qty. 72:3/8″SpringWasher(notincluded).
i. Qty. 112:3/8″FlatWasher(notincluded).
j. Qty. 72:3/8″Nut(notincluded).
1. Cut the Stakes, Front End Rails, Back End Rails, and Side rails to the sizes indicated
inFigureManddrill3/8″diametermountingholeswhereshown.
FIGURE L
3/8″ DIAMETER
2
1.6
0.75
0.75
3/8″ DIAMETER
1.25
1.25
2
2
0.75 2
94.5
1.25
R2
18.5825
2
50.835
2
18.5825
3.5
3/8″ DIAMETER
2
8
2
24
2
82
3.5
2
27
1.25
6
26.526.5
2
3.5
SIDE RAIL
STAKE
FRONT END
BACK END RAIL
CONNECTING PLATE

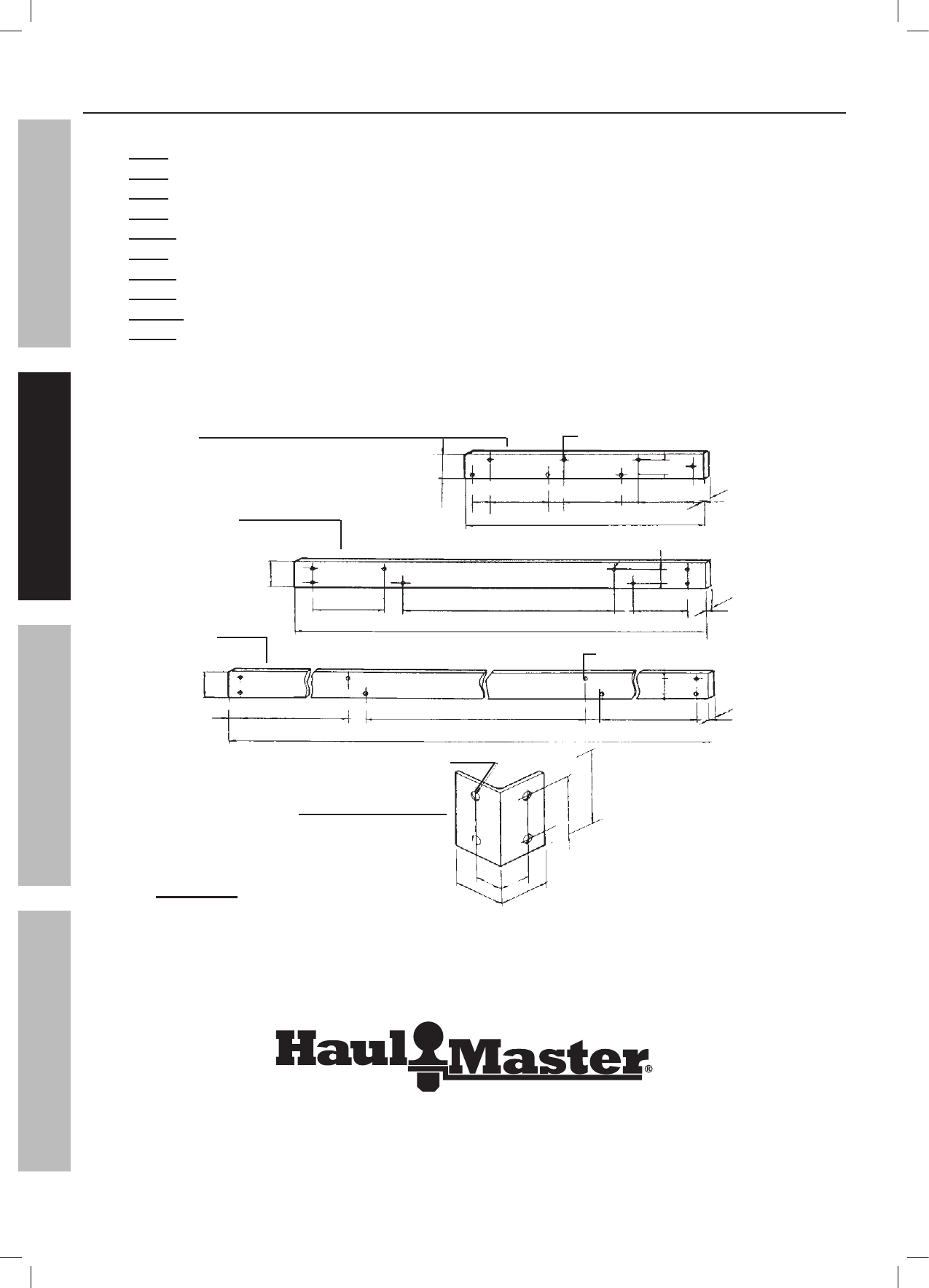

Figure M: Stake Dimensions and Hole Locations
