Page 13For technical questions, please call 1-800-444-3353.Item 90154
SAFETYOPERATIONMAINTENANCE ASSEMBLY
Optional Bed Installation (not included)
Minimum Required Parts:
a. Qty. 2: 3/4″x48″x48″Plywood(notincluded).
b. Qty. 24-30:3/8″CrossHeadBolts(notincluded).
c. Qty. 24-30:3/8″FlatWashers(notincluded).
d. Qty. 24-30:3/8″SpringWashers(notincluded).
e. Qty. 24-30: 3/8″Nuts(notincluded).
1. Drill3/8″mountingholesasshowninFigureL.
2. Use3/8″CrossHeadBolts,3/8″FlatWashers,3/8″SpringWashers,and
3/8″NutstosecurethePlywoodbedtotheTrailerframe.
48
48
48
48
9.29
9.29
13.96
14.35
8.9
0.75
4.37
4.37
13.96
13.96
4.37
4.37
18.9
18.9
18.9
18.9
9.29
3/8″ CROSS HEAD BOLT
3/8″ FLAT WASHER
3/8″ SPRING WASHER
3/8″ NUT

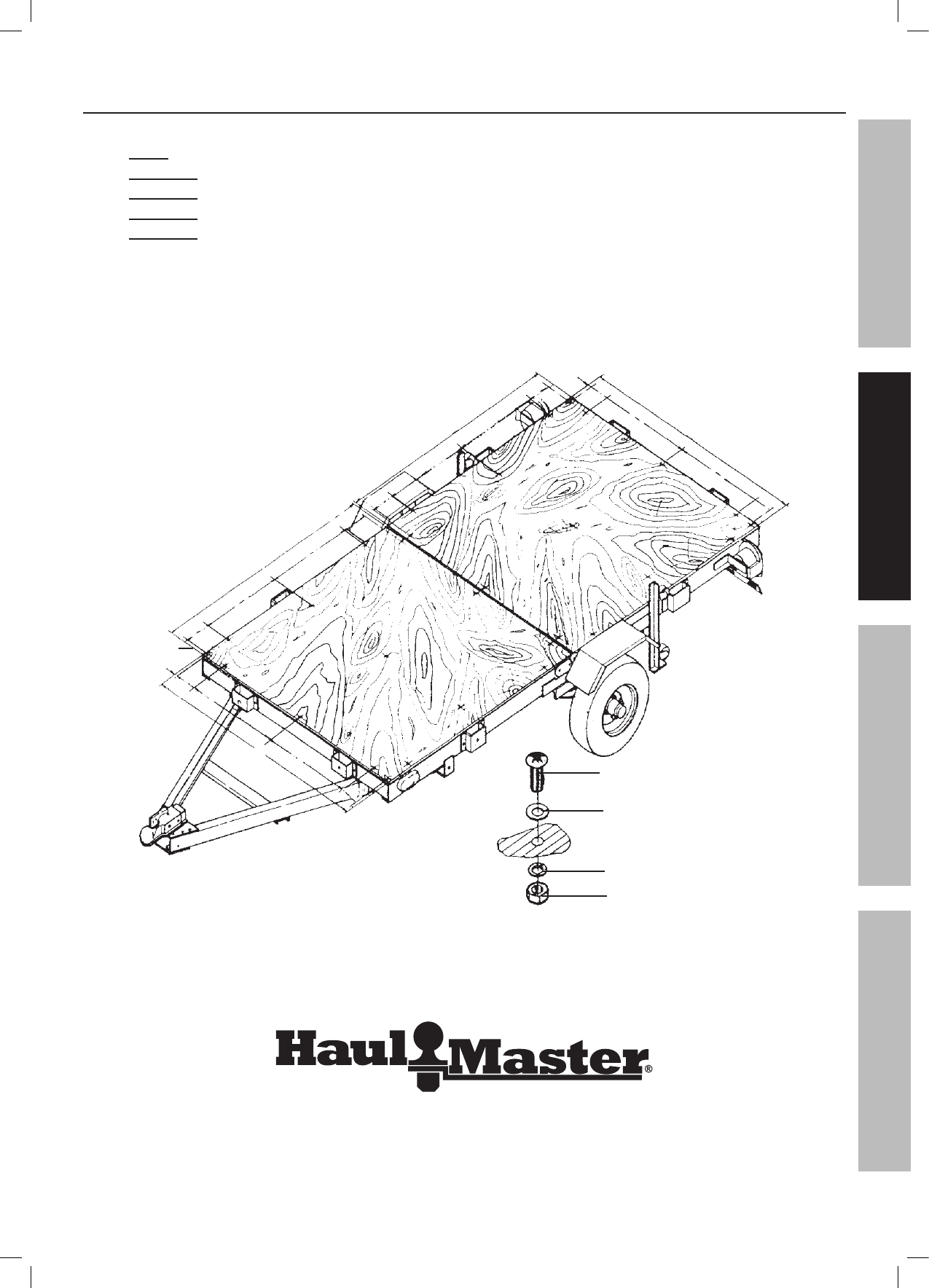

Figure L: Optional Bed Installation
