Page 11For technical questions, please call 1-800-444-3353.Item 90154
SAFETYOPERATIONMAINTENANCE ASSEMBLY
30. To install the Wiring Harness on the Trailer,
use a Screw (R) to attach the White Ground Wire
located at the Plug end of the Wiring Harness
to the small mounting hole in the
Right Connecting Rail (3R). (See Figure J.)
Note: The Wiring Diagram on page 12 may
also be helpful in connecting trailer wires.
31. Leaveabout18″ofwirebeyondthe
Hitch Coupler (7), and run the Wiring Harness
along the inside of the Right Connection Rail (3R)
to the Front Right Side Rail (1FR). Then, split the
Yellow/Brown Wires from the Green/Brown Wires.
32. Run the Yellow/Brown Wires along the
inside of the Front Cross Member (2A) to
the Side Running Light (24) located on the
Front Left Side Rail (1FL). Then, run the Green/
Brown Wires along the inside of the Front Right
Side Rail (1FR) to the other Side Running Light.
33. Connect the Wire Lead from the two
Side Running Lights (24) to the Brown Wire on
each side of the Trailer. Then, insert Wire Clips
along the entire length of the Side Rails of the
Trailer to hold down the Wiring Harness.
34. Run the Yellow/Brown Wires to the
Left Tail Light (28L).
StriptheendsoftheWiresabout3/4″.
Connect the Yellow Wire to the Red Wire of the
Left Tail Light. Then, connect the Brown Wire
to the two Black Wires of the Left Tail Light.
35. Run the Green/Brown Wires to the
Right Tail Light (28R).
StriptheendsoftheWiresabout3/4″.
Connect the Green Wire to the Red Wire of the
Right Tail Light. Then, connect the Brown Wire
to the two Black Wires of the Right Tail Light.
NOTE: Only a qualified technician should perform
the electrical service that may be needed to
enable your particular make/model vehicle to
power the Trailer’s 12 volt DC lighting system.
This is beyond the scope of this manual.
WIRE LEAD
FROM
SIDE RUNNING LIGHT
(24)
WHITE GROUND WIRE
WIRE LEAD
FROM
SIDE RUNNING LIGHT
(24)
BROWN
YELLOW
GREEN BROWN
YELLOW
RED
BROWN
BLACK
GREEN
RED
BROWN
BLACK
LEAVE 16″ EXCESS WIRE HERE. LEAVE 16″ EXCESS WIRE HERE.
LEFT TAIL LIGHT (28L)
RIGHT TAIL LIGHT (28R)
WIRE HARNESS CONNECTOR PLUG

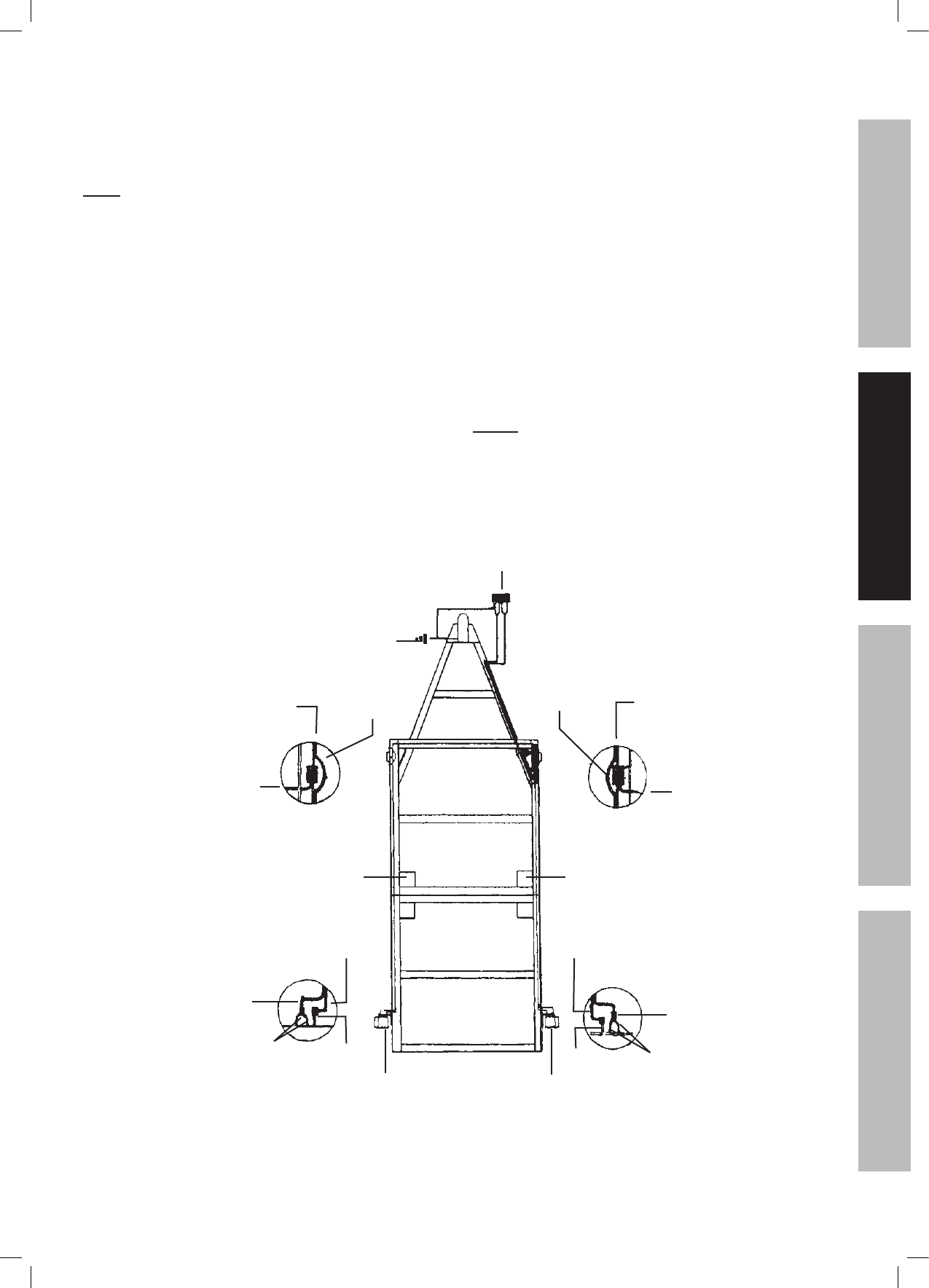

Figure J: Trailer Wiring
