Chapter 2: Installation
30

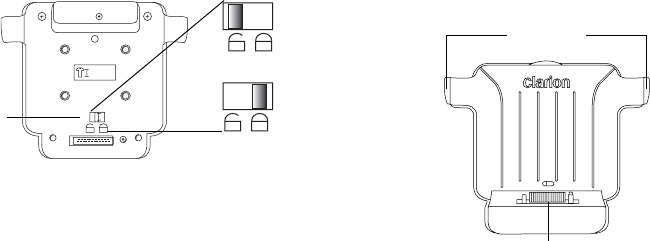

3. Locate the lock switch on the back of the cradle.
Back of the cradle
4. Set the lock switch to the unlock position.
5. Slide the N.I.C.E. P200 into the cradle making
sure that the flanges securely hold it.
DC IN
L=8.0Max
Lock switch
Locked
Unlocked
The receptacle on the bottom of the N.I.C.E.
P200 fits into the connector in the cradle.
Front of the cradle
6. Move the lock switch to the locked position.
N.I.C.E. P200 connector
Flanges
