Example 8: Recalling a global preset
In the following example, a preset is recalled to become the current configuration. The steps
show the front panel indications that result from your action.
1. Clear all selections: Press and release the Esc button. The button ashes once.

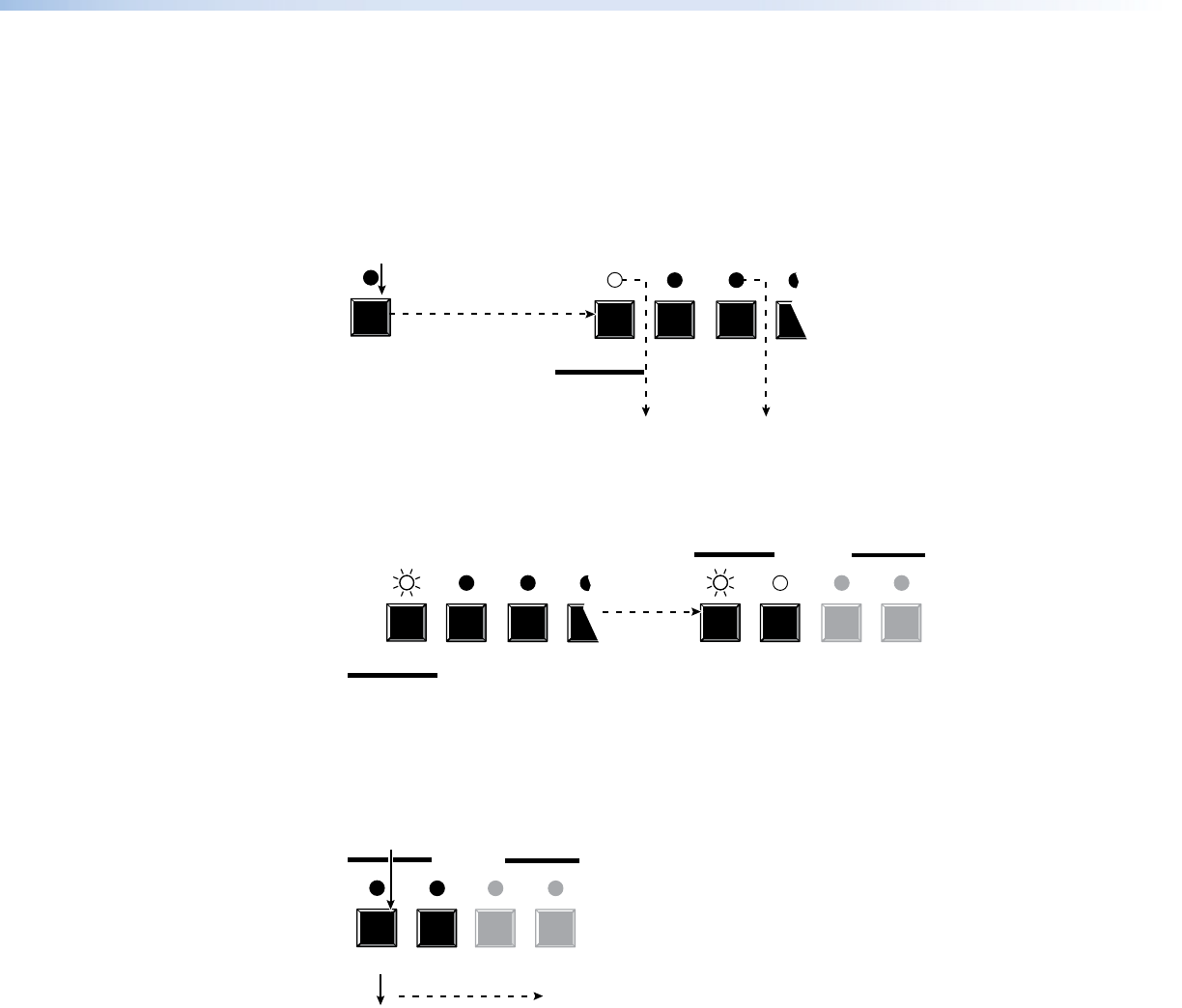

2. Select Recall Preset mode: Press and release the Preset button.
1 2 3 4
PRESETPRESET
COMPUTER/AUDIO OU
Press and release Preset button.
The Preset LED lights.
All input and output LEDs with assigned presets light.
Preset 15 Preset 16 Preset 18Preset 17
Lit =
(Preset Assigned)
Unlit =
(Preset Unassigned)
3. Select the preset: Press and release the input button for the desired preset.
1 2 3 4
Preset 15 Preset 16 Preset 18Preset 17
CONTROL
ENTER PRESET
COMPUTER/AUDIO OU
VIEW ESC
The Enter LED blinks to indicate
the need to save the preset.
The Preset LED remains lit.
Press and release the Computer Output 1 button.
The LED blinks to indicate that this preset
number is selected but not recalled.
4. Confirm the recall: Press and release the Enter button. The conguration stored in the
selected memory location is now the current configuration and can be viewed in the
View-only mode (see example 5).
CONTROL
ENTER PRESET
VIEW ESC
The Enter and Preset LEDs
return to the unlit state.
Press the Enter button to
recall the preset.
All input LEDs
return to the
unlit state.
MPX 866 A Media Presentation Matrix Switcher • Operation 38
