Configuration Tab
System Settings Page
The MPX 866 A matrix switcher downloads the System Settings page (see figure 56) when
you click the Configuration tab. The screen consists of fields in which you can view and
edit IP administration and system settings. You can access the Passwords pages by clicking
the appropriate link. See “Ethernet Connection” for basic information about IP addresses
and subnetting.
Select Passwords
Video Input Settings
Refresh
Select Firmware Upgrade

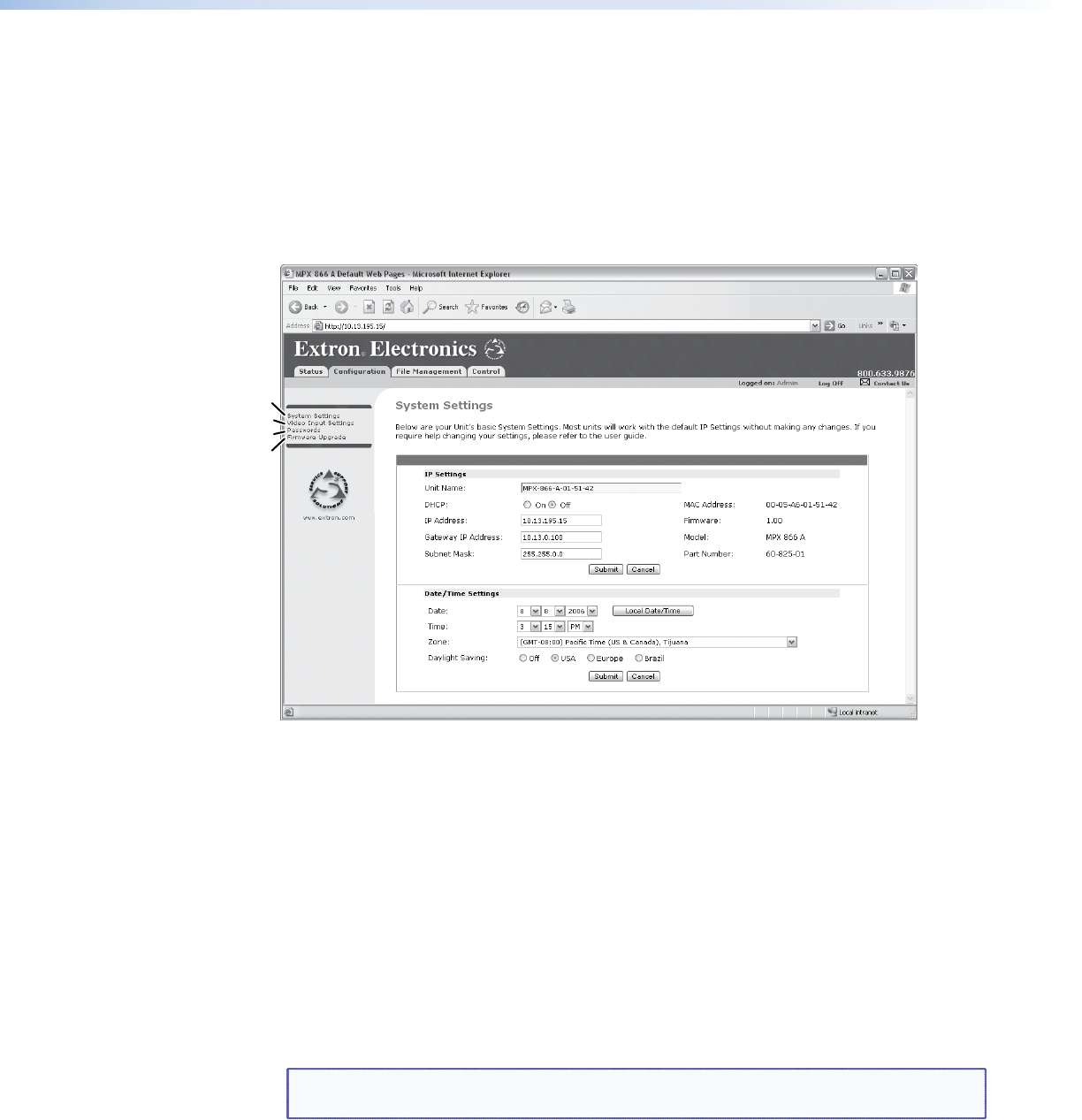

Figure 56. System Settings Page
On password-protected connections, there are two levels of protection: administrator and
user. Administrators have full access to all switching capabilities and editing functions. Users
can create ties, create and recall presets, set RGB and audio mutes, and view all settings with
the exception of passwords.
IP Settings fields
The IP Settings fields provide a location for viewing and editing settings unique to the
Ethernet interface. After editing any of the settings in this eld, click the Submit button at
the bottom of the field.
Unit Name field
The Unit Name field contains the name of the switcher. This name field can be changed to
any valid name, up to 24 alphanumeric characters.
NOTE: The following characters are invalid or not recommended in the matrix name:
+ ~ , @ = ‘ [ ] { } < > ’ “ ; : | \ and ?.
