Control Tab
Set and View Ties Page
You can create ties on the Set and View Ties page (see gure 63). Access the Set and View
Ties page by clicking the Control tab.
Global Presets
Video & Audio Settings
Refresh

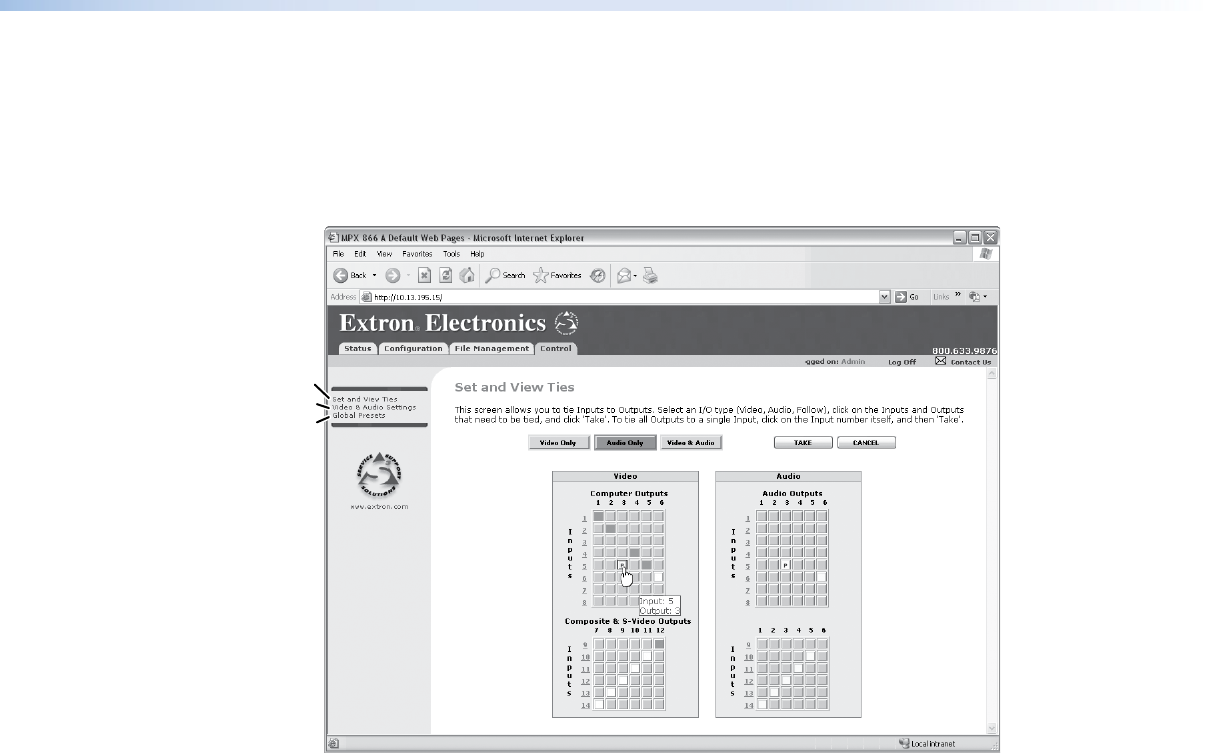

Figure 63. Set and View Ties Page
The page consists of a matrix of input (rows) and output (columns) selection buttons of four
different colors:
The amber buttons indicate video and audio ties.
The green buttons indicate video only ties.
The red buttons indicate audio only ties.
The gray buttons indicate no ties.
MPX 866 A Media Presentation Matrix Switcher • HTML Operation 106
