14

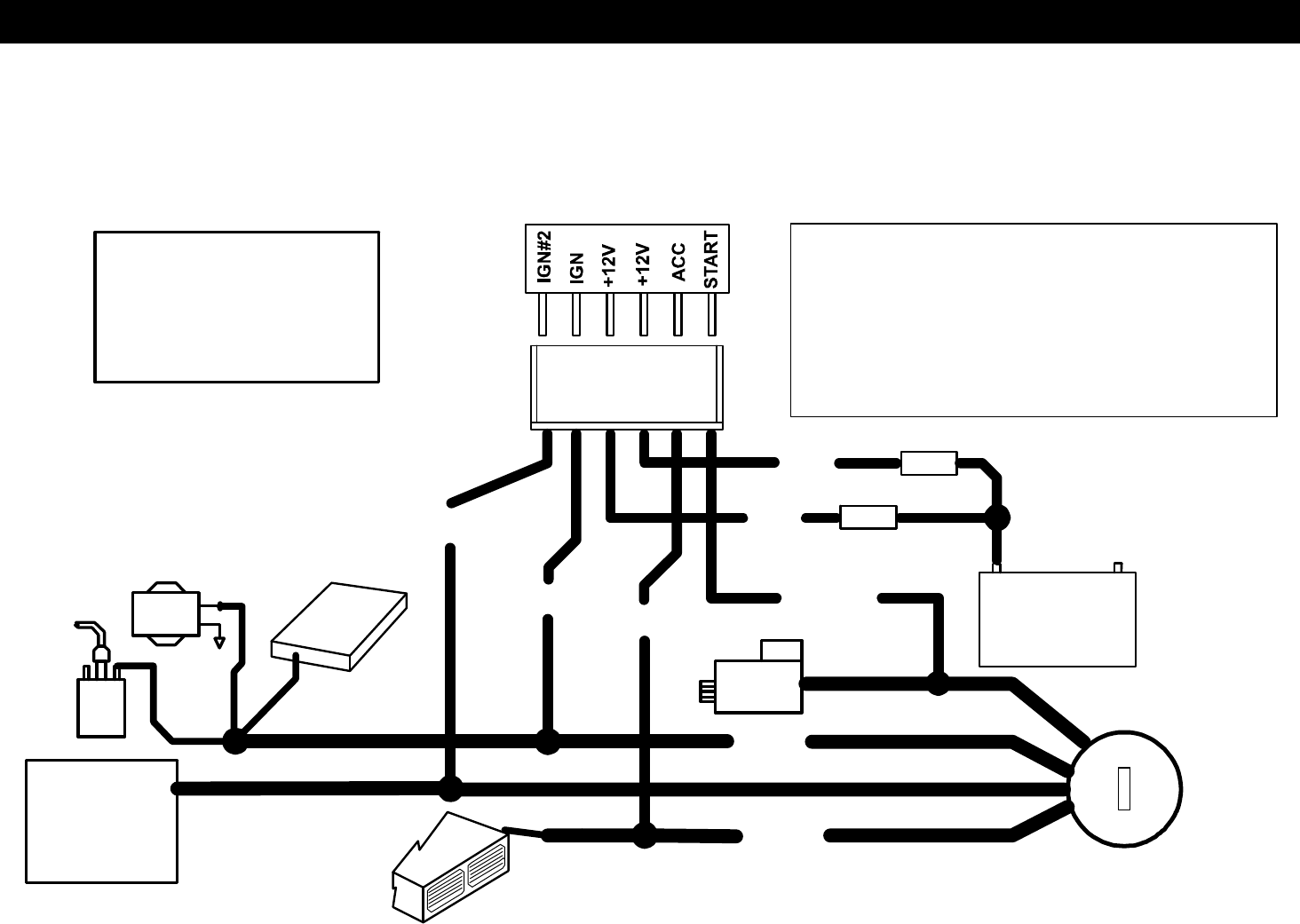

WIRING: 6-PIN HIGH-CURRENT CONNECTOR
PINK/WHITE: +12V MULTI-FUNCTION OUTPUT 30A (JUMPER SELECTABLE page 29):
This is an optional multi-function output wire the can be configured as a Second IGN, ACC or STARTER output. Some
vehicles require more than just one IGN, ACC, or STARTER wire in order to start and run successfully. If this is the case
for your particular vehicle, then use the jumper pin located under the access panel on the top of the EZEESTART control
module to configure this wire to suit your needs. The DEFAULT setting is IGNITION. See Jumper Pin Diagram.
FUSE
RED
PINK/WHITE
30A
FUSE
RED
30A
+
-
BROWNPINK
FUEL
ENGINE
BATTERY
PUMP
ECU
GRAY
+
STARTER
-
COIL
IGN
ACC
HEAT / AC
Diagram not to scale,
for illustration purposes
only. Your vehicle may
differ.
IGN 2
ACC 2
Jumper Select
START 2
(page 29)
NOTE: Heavy duty/High Current Ignition circuits
greater than 30 AMPS. Industrial vehicles, dual
AC, etc. require high-current relays. DO NOT use
the outputs of the Remote Starter for High-Current
systems or you will risk damaging the unit and
creating a hazardous condition! Use Part #CS-
403 relays for circuits up to 70 amps.
