WIRING Cont.
PIN 4: BROWN/WHITE: (-) HORN CHIRP/HONK OUTPUT
Connect to the LOW CURRENT Negative Horn Trigger wire usually located near the steering column. If the vehicle
horn circuit requires +12V, then a relay is required. RELAY WIRING: Connect the Yellow/White wire to terminal #85,
connect relay terminals #86 and #87 to +12V constant power. Connect terminal #30 to the +12V positive Horn
activation wire.
PIN 5: YELLOW/BLACK: (-) IGNITION OUTPUT -or- ANTI-GRIND/STARTER DISABLE OUTPUT
This negative output wire is programmable and can function two different ways. It can be used as a Negative Ignition
output for GM Anti-theft and Transponder Bypass modules, or it can be programmed to function as an Anti grind/Starter
Disable output. As a Negative Ignition wire, this wire turns on when the remote start button is pressed and stays on
through the duration of the remote start. As an Anti grind/Starter disable this wire activates when the Lock button on the
remote is pressed and during remote start. When using this wire for an Anti grind/Starter disable, an optional Relay is
needed to interrupt the Starter circuit. The starter disable circuit adds an anti-theft feature to this remote start system and
prevents accidental grinding of the starter if key is turned too far after a remote start. See diagrams on BELOW.

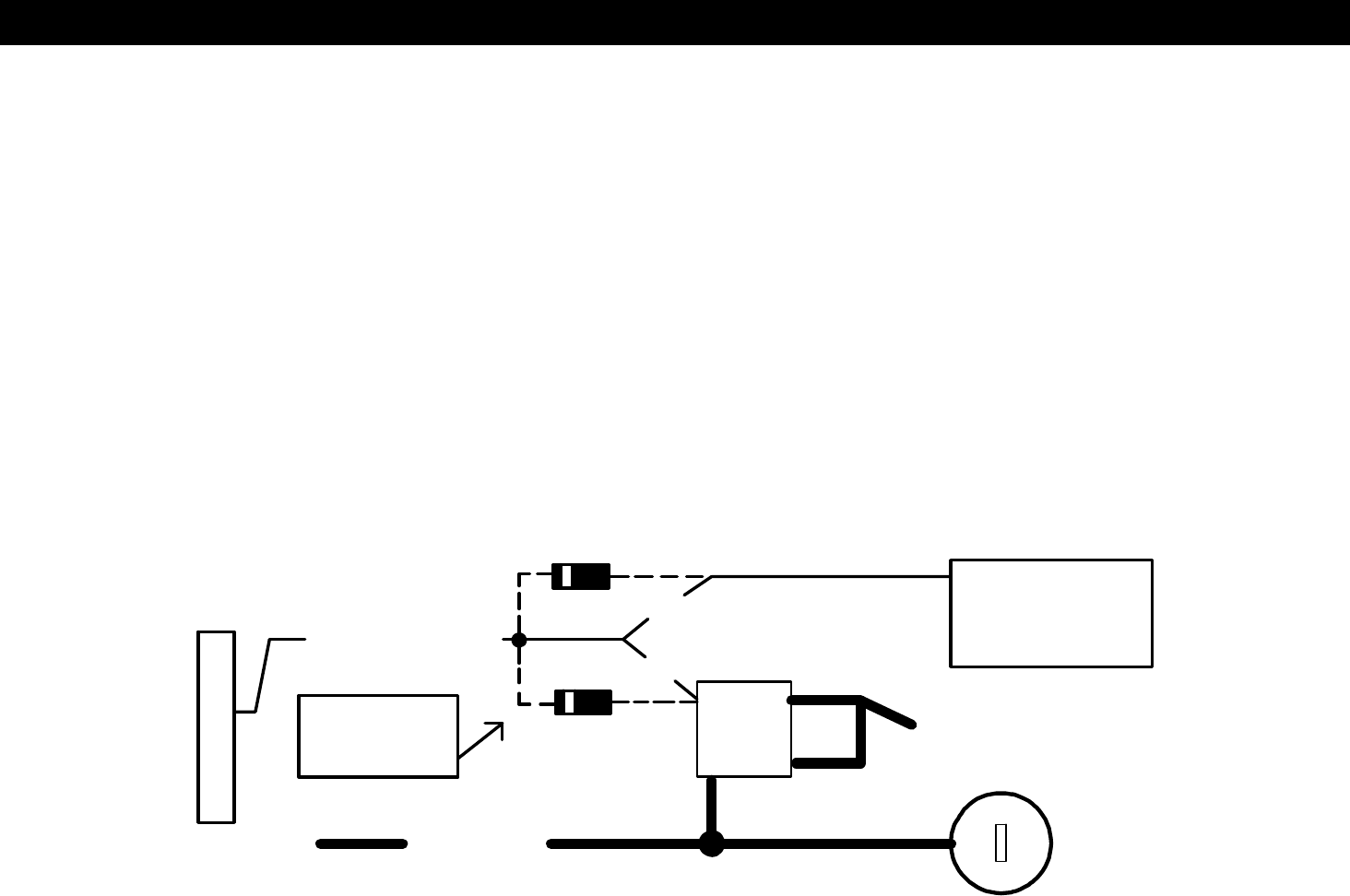

YELLOW/BLACK IGNITION OUTPUT/ANTI-THEFT (Relay and/or Module not included)
YELLOW/BLACK
85
86
30 87
3rd IGN
(If needed)
IGN SW.
OR
ANTI-THEFT/
MODULE
+12V CONSTANT
OR
TRANSPONDER
Diode isolate
if using both!
