Black plate (19,1)
Model "Z51-D" EDITED: 2010/ 7/ 23
SSS1026

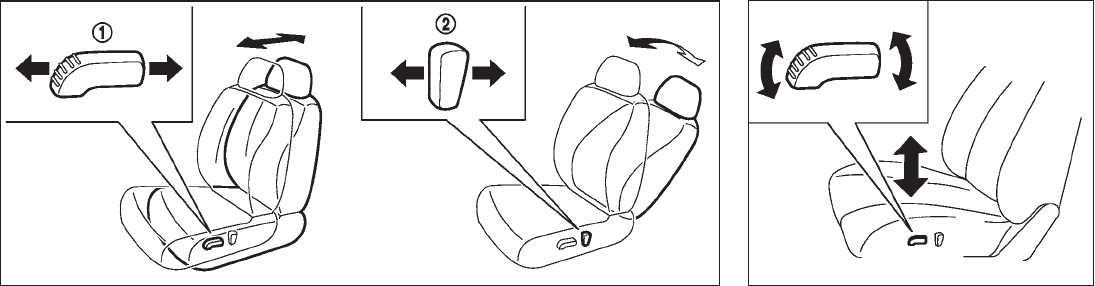

Forward and backward:
Moving the switch
*
1
forward or backward will
slide the seat forward or backward to the
desired position.
Reclining:
Move the recline switch
*
2
backward until the
desired angle is obtained. To bring the seatback
forward again, move the switch
*
2
forward.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. (See “PRECAUTIONS ON SEAT BELT
USAGE” later in this section.) Also, the seatback
can be reclined to allow occupants to rest when
the vehicle is stopped and the transmission is in
the P (Park) position.
SSS1027
Seat lifter (if so equipped):
Push the front or rear end of the switch up or
down to adjust the angle of the front portion or
height of the seat.
Safety — Seats, seat belts and supplemental restraint system 1-5
