Black plate (112,1)
Model "Z51-D" EDITED: 2010/ 7/ 23
MODELS WITH COLOR DISPLAY
To adjust the clock on the front colordisplay, use
the SETTING button on the center multi-
function control panel. See “HOW TO USE
SETTING BUTTON” in the “4. Center display,
heater, air conditioner, audio, phone and voice
recognition systems” section.
The clock settings display cannot be operated
while driving. Stop the vehicle in a safe place
and apply the parking brake before setting the
clock.
SIC3802
MODELS WITHOUT COLOR DISPLAY
The digital clock (in the audio unit) displays the
time when the ignition switch is in the ACC or
ON position.

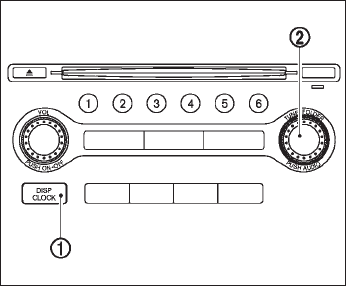

Adjusting the time
1. Push and hold the CLOCK button
*
1
for
more than 2 seconds until the display shows
“Hour Adjust”.
2. Turn the AUDIO knob
*
2
to adjust hours.
3. Push the CLOCK button
*
1
or AUDIO
knob
*
2
to enter. The display will show
“Minute Adjust”.
4. Turn the AUDIO knob
*
2
to adjust minutes.
5. Push the CLOCK button
*
1
or AUDIO
knob
*
2
to enter.
The display will return to the regular clock
display after 10 seconds.
If the power supply is disconnected, the clock
will not indicate the correct time.
Readjust the time.
CLOCK
2-40 Instruments and controls
